Harvey Tool

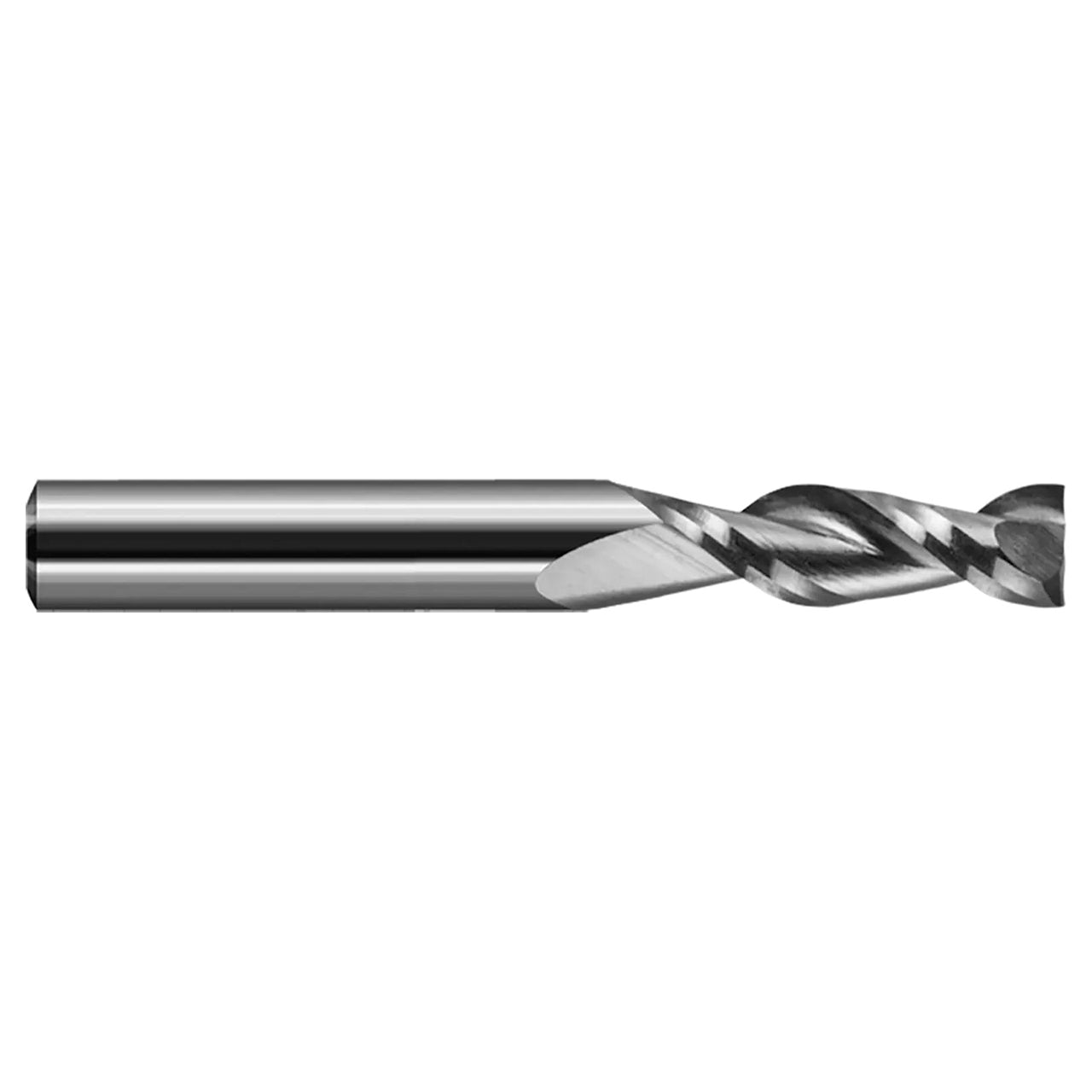

Harvey Tool 898208-C4 | 0.1250" (1/8) Diameter x 0.1250" (1/8) Shank x 0.3750" (3/8) LOC x 1.5000" (1-1/2) OAL 2 Flute Hard Plastics Amorphous Diamond Carbide Plastics 2 Flute Square End Mill

Harvey Tool 898208-C4 | 0.1250" (1/8) Diameter x 0.1250" (1/8) Shank x 0.3750" (3/8) LOC x 1.5000" (1-1/2) OAL 2 Flute Hard Plastics Amorphous Diamond Carbide Plastics 2 Flute Square End Mill

SKU: 25232738

$54.00 USD
$54.00 USD $54.00 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 5 Grams

In stock

Free Shipping on Orders Over $75

View full details

The Harvey Tool End Mills for Plastics - Square Upcut - 2 Flute product offering features tooling with a slower helix, which reduces lifting forces, making its design preferable for fiber-reinforced applications and vacuum table setups.

  • High rake, high relief design with large flute valley maximizes chip removal performance
  • 2 flute design improves rigidity for better accuracy, less deflection, and longer tool life
  • Center cutting design improves plunging and ramping
  • CNC ground in the USA
  • Solid carbide

Product Specifications
Tool Number 898208-C4
Cutter Diameter (Inch) 0.1250" (1/8)
Length of Cut (Inch) 0.3750" (3/8)
Overall Length (Inch) 1.5000" (1-1/2)
Flutes 2
LOC Multiple 3x
Shank Diameter (Inch) 0.1250" (1/8)
Coating C4
