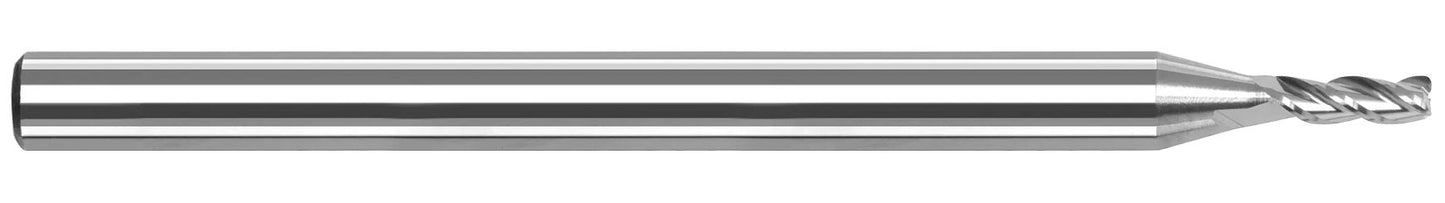

This offering of Variable Helix End Mills for Aluminum Alloys - Corner Radius - Long Reach, Stub Flute is optimized for aluminum and aluminum alloys with excellent performance in copper, brass, and bronze alloys. Its long reach design makes it an excellent choice for deep cavity milling.
- Long reach design for deep cavities
- Reduced neck diameter to avoid heeling
- Variable helix design (approx. 42 Degree) reduces chatter and harmonics and increases material removal rates
- Small corner radius for improved strength
- 3 flutes
- h6 shank tolerance for high precision tool holders
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.2500" (1/4) |
| Length of Cut (Inch) | 0.3750" (3/8) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Number of Flutes | 3 |
| Corner Radius | 0.0300" |
| LOC Multiple | 1.5x |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Coating/Finish | Uncoated |
