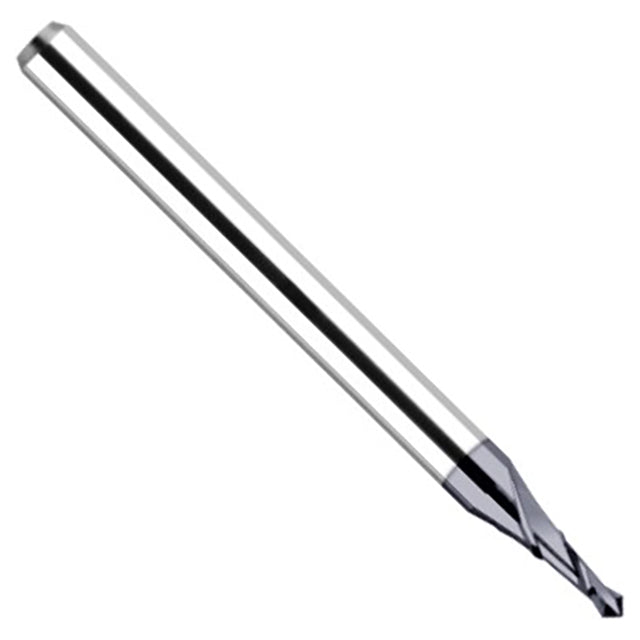

Features
- 90 Degree available in long length!
- Thinned Web to Reduce Walking
- Self-Centering Point Geometry
- 2 Flutes
- Solid Carbide
- CNC ground in the USA
Product Specifications
| Drill Diameter (Decimal Inch) | 0.2500" |
| Drill Diameter (Inch) | 1/4" |
| Angle Per Side | 85 Degrees |
| Included Angle | 170 Degree |
| Flute Length (Decimal Inch) | 0.7500" |
| Flute Length (Inch) | 3/4" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (Inch) | 1/4" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (Inch) | 2-1/2" |
| Finish/Coating | AlTiN |
| Through Coolant | No |
| Material | Solid Carbide |
| Number of Flutes | 2 |
| LOC Multiple | (3x) |
| Web Thickness (Decimal Inch) | 0.0180" |
| Type | II |
| Single or Double | Single |
