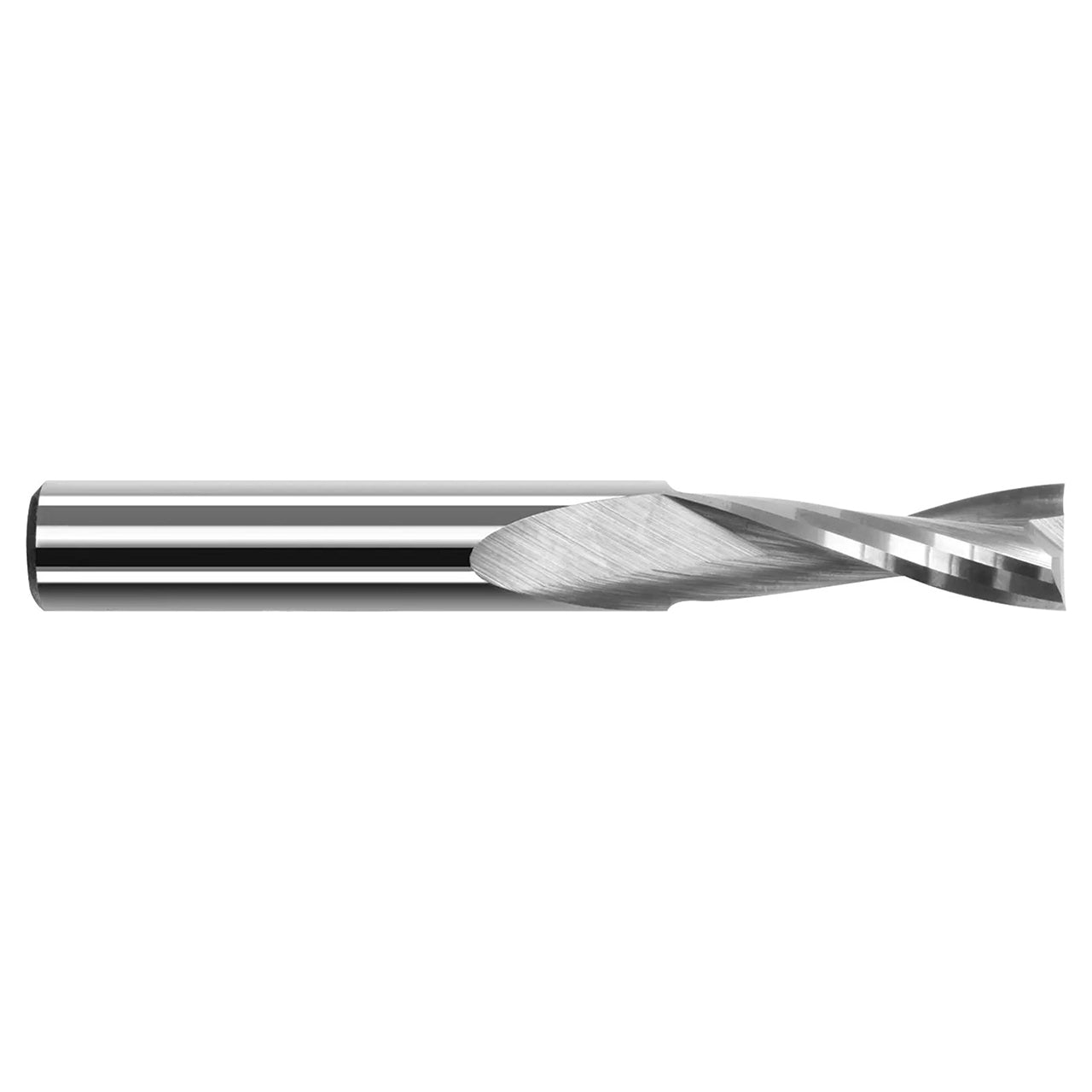

This fully stocked Harvey Tool offering of end mills for plastics -square upcut-2 flute features a slower helix (of approximately 20 Degree) for minimized lifting forces, preferable for vacuum table setups.
Features- High rake, high relief design with large flute valley maximizes chip removal and performance
- Slower helix reduces lifting forces, making design preferable for fiber-reinforced applications and vacuum table setups
- 2 flute design improves rigidity for better accuracy, less deflection, and longer tool life
- Center cutting design improves plunging and ramping
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | 874916-C4 |
| Cutter Diameter (Inch) | 0.2500" (1/4) |
| Length of Cut (Inch) | 1.0000" (1) |
| Overall Length (Inch) | 3.0000" (3) |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Number of Flutes | 2 |
| LOC Multiple | (4x) |
| Coating | C4 |
| Profile | Square |
