Harvey Tool

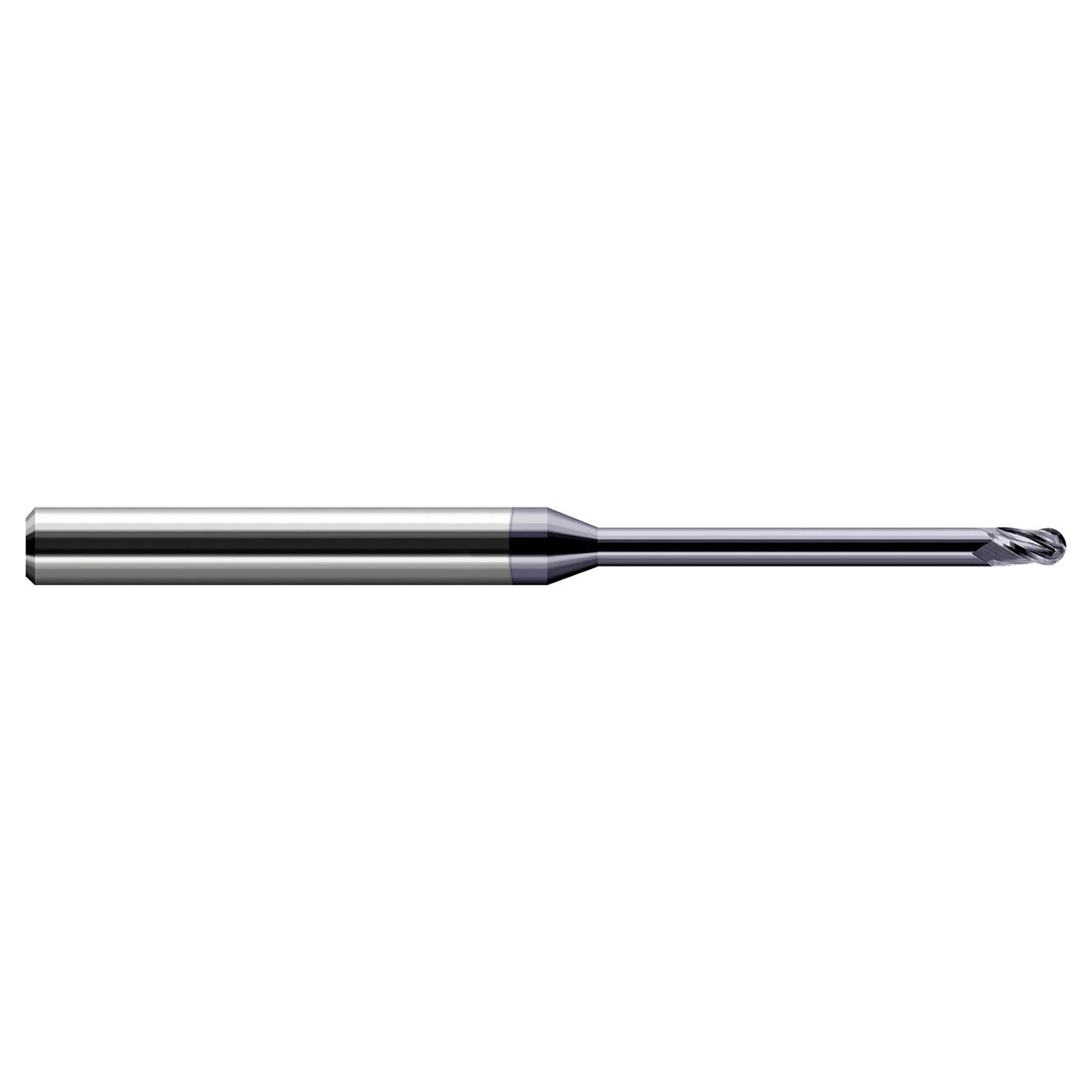

Harvey Tool 868239-C3 | 0.0390" (1 mm) Diameter x 0.1250" (1/8) Shank x 0.0590" LOC x 2.5000" (2-1/2) OAL x 3 Flutes AlTiN Coated Carbide Miniature Tapered Ball End Mill

Harvey Tool 868239-C3 | 0.0390" (1 mm) Diameter x 0.1250" (1/8) Shank x 0.0590" LOC x 2.5000" (2-1/2) OAL x 3 Flutes AlTiN Coated Carbide Miniature Tapered Ball End Mill

SKU: 25211612

$56.60 USD
$56.60 USD $56.60 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 9 Grams

View full details

The stub flutes on this Miniature End Mills - Ball - Long Reach, Stub Flute collection of Harvey Tool end mills provides maximum rigidity, while its reduced neck diameter helps to avoid heeling during machining.

  • Long length design for deep cavities
  • Stub flutes for maximum rigidity
  • CNC ground in the USA
  • Center cutting
  • Solid carbide

Product Specifications
Tool Number 868239-C3
Cutter Diameter (Inch) 0.0390" (1 mm)
Neck Diameter (Inch) 0.0380"
Length of Cut (Inch) 0.0590"
Overall Reach (Inch) 0.2810" (9/32)
Overall Length (Inch) 2.5000" (2-1/2)
Flutes 3
LOC Multiple 1.5x
Reach Multiple 7x
Shank Diameter (Inch) 0.1250" (1/8)
Coating C3
