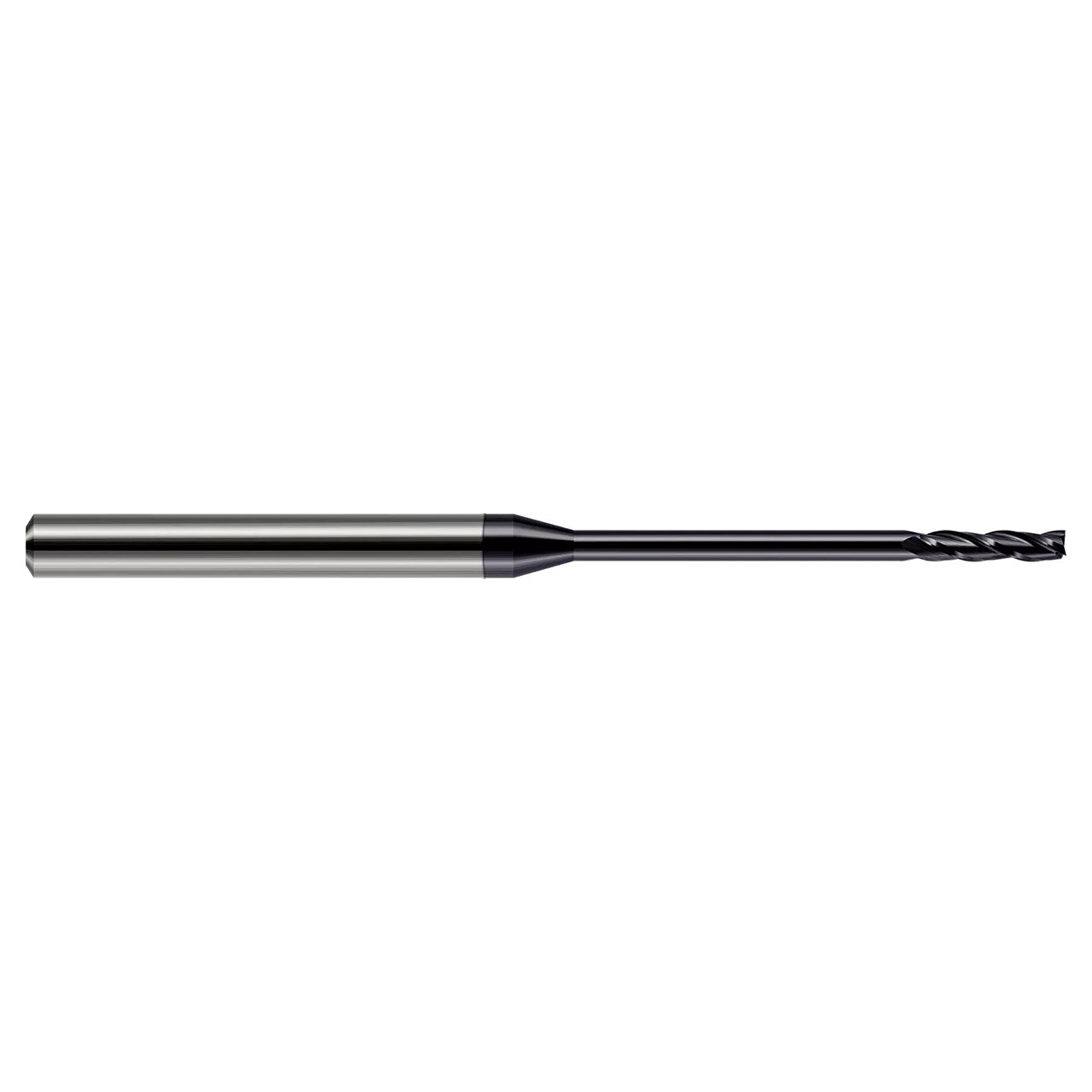

Harvey Tool 867025 | 0.0250" Diameter x 0.1250" (1/8) Shank x 0.1250" (1/8) LOC x 2.5000" (2-1/2) OAL x 3 Flutes Uncoated Carbide Square End Mill

Harvey Tool 867025 | 0.0250" Diameter x 0.1250" (1/8) Shank x 0.1250" (1/8) LOC x 2.5000" (2-1/2) OAL x 3 Flutes Uncoated Carbide Square End Mill

SKU: 25211607

$57.50 USD
$57.50 USD $57.50 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 14 Grams

View full details

Optimized for deep cavity and deep pocket milling applications, Miniature End Mills - Square - Long Reach, Long Flute feature a reduced neck diameter to avoid heeling, center cutting geometry, and solid carbide construction.

  • Long length design for deep cavities
  • Long flutes for deep pocket milling
  • CNC ground in the USA
  • Center cutting
  • Solid carbide

Product Specifications
Tool Number 867025
Cutter Diameter (Inch) 0.0250"
Neck Diameter (Inch) 0.0240" (.6 mm)
Length of Cut (Inch) 0.1250" (1/8)
Overall Reach (Inch) 0.3125" (5/16)
Overall Length (Inch) 2.5000" (2-1/2)
Flutes 3
LOC Multiple 5x
Reach Multiple 12x
Shank Diameter (Inch) 0.1250" (1/8)
Coating Uncoated
