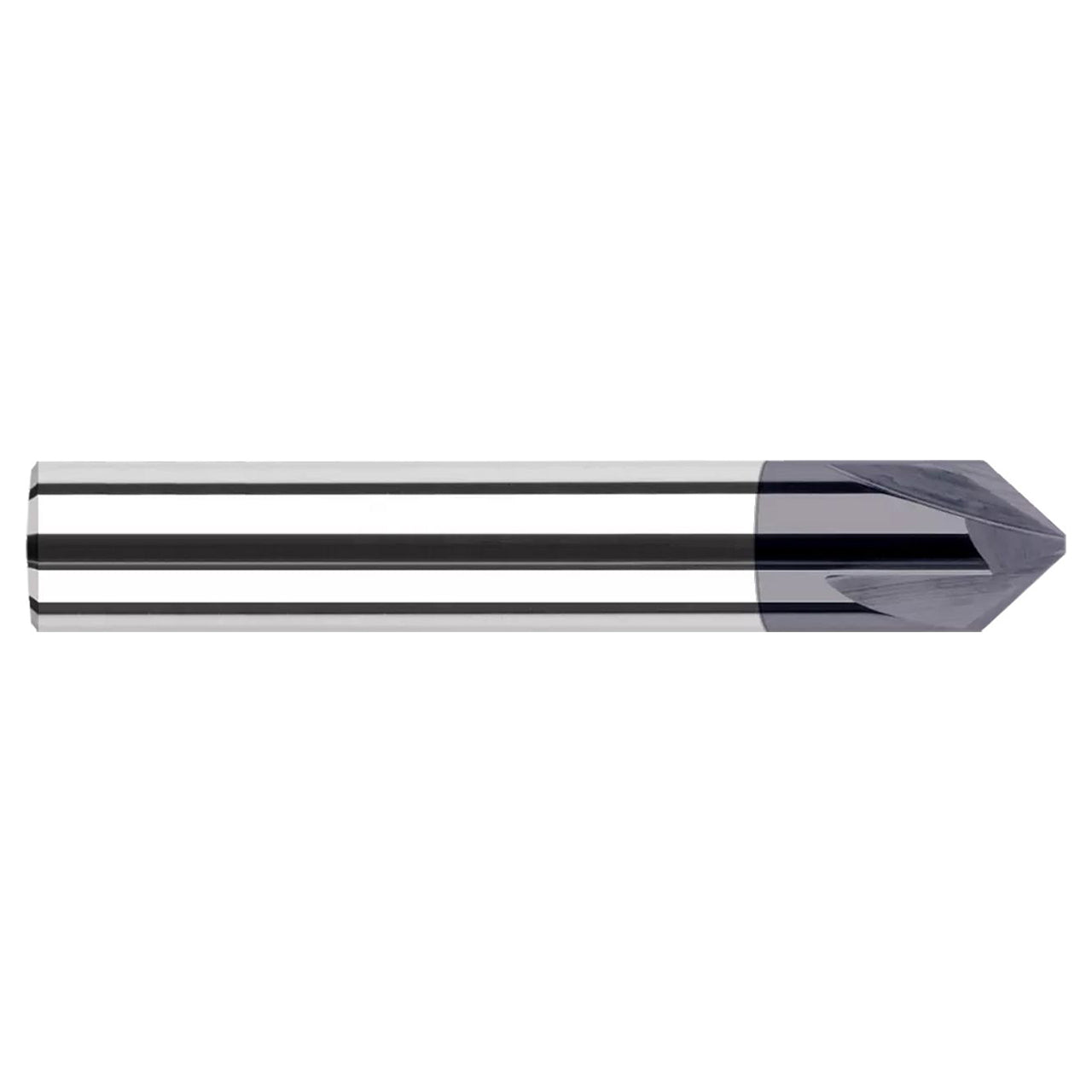

Harvey Tool's offering of pointed and flat end Chamfer Cutters has been engineered in three different styles: pointed, which is great for chamfering and deburring in small and narrow areas; and flat, which is non-end cutting, and optimized for profiling and chamfering larger features. End cutting which is great for blending the floor and a chamfered wall in one pass.
- Flat End - (non-cutting) multi-flute design improves tool life and finish for profiling and chamfering larger features
- CNC ground in the USA
Product Specifications
| Tool Number | 866145-C8 |
| Length of Cut (Inch) | 0.0430" |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Tip (Inch) | 0.0400" |
| Angle per Side | 45 |
| Included Angle | 90 |
| Flutes | 4 |
| Type | II |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating | C8 |
| Center Cutting | N |
