Product Specifications
| Manufacturer Part Number | 865404-C6 |
| Diameter (Inch) | 1/16" |
| Diameter (Decimal Inch) | 0.063" |
| Length of Cut (Inch) | 3/16" |
| Length of Cut (Decimal Inch) | 0.187" |
| Overall Length (Inch) | 1-1/2" |
| Overall Length (Decimal Inch) | 1.500" |
| Web Thickness (Decimal Inch) | 0.005" |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.125" |
| Angle per Side (Degree) | 60 Degree |
| Included Angle (Degree) | 120 Degree |
| Number of Flutes | 4 |
| Material | Carbide |
| Coating | AlTiN Nano |

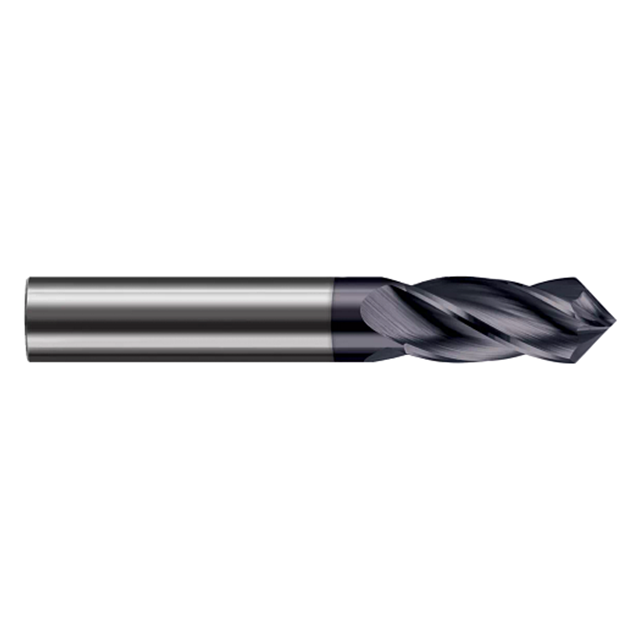

| Product Type | Helical Tip Drill/End Mill |
