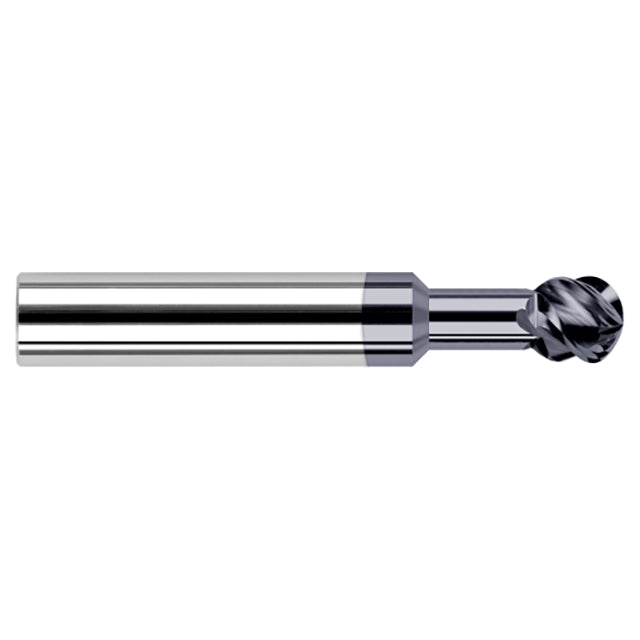

Product Specifications
| Cutter Diameter (Inch) | 1/8" |
| Cutter Diameter (Decimal Inch) | 0.1250" |
| Neck Diameter (Decimal Inch) | 0.0760" |
| Length of Cut (Decimal Inch) | 0.1070" |
| Neck Length (Inch) | 3/8" |
| Neck Length (Decimal Inch) | 0.3750" |
| Overall Reach (Decimal Inch) | 0.4820" |
| Overall Length (Inch) | 1-1/2" |
| Overall Length (Decimal Inch) | 1.5000" |
| Radius (Inch) | 1/16" |
| Radius (Decimal Inch) | 0.0625" |
| Wrap Angle | 270 Degree |
| Number of Flutes | 4 |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Metric (Yes/No) | No |
| Center Cutting (Yes/No) | No |
| Chip Breaker (Yes/No) | No |
| Finish/Coating | AlTiN |
| Double Ended (Yes/No) | No |
| Weldon Flat (Yes/No) | No |
| Coolant Through (Yes/No) | No |
