Harvey Tool

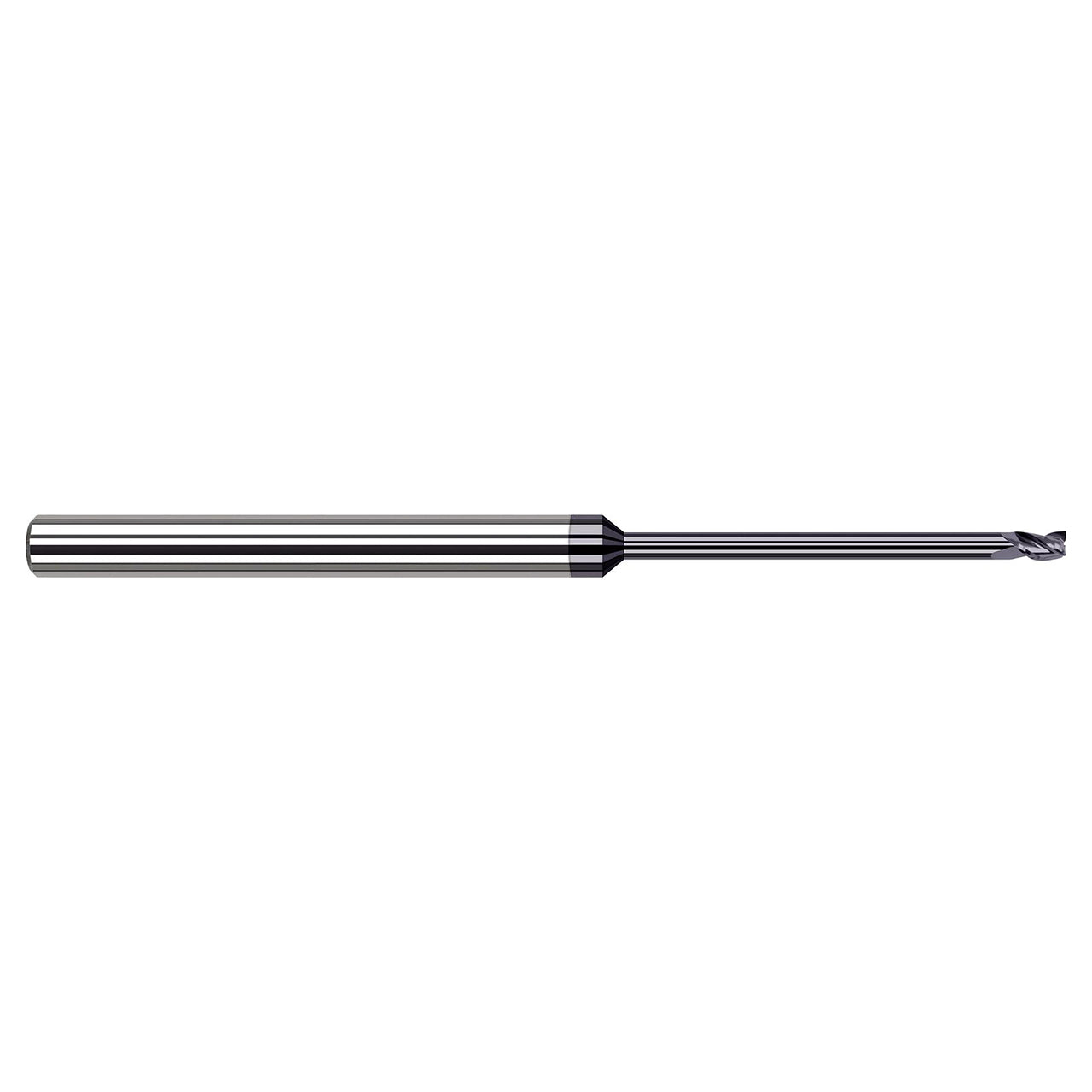

Harvey Tool 861655-C3 | 0.0550" (1.4 mm) Diameter x 0.1250" (1/8) Shank x 0.0820" LOC x 2.5000" (2-1/2) OAL x 4 Flutes AlTiN Coated Carbide Square End Mill

Harvey Tool 861655-C3 | 0.0550" (1.4 mm) Diameter x 0.1250" (1/8) Shank x 0.0820" LOC x 2.5000" (2-1/2) OAL x 4 Flutes AlTiN Coated Carbide Square End Mill

SKU: 25211604

$47.90 USD
$47.90 USD $47.90 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 9 Grams

View full details

This solid carbide offering of Miniature End Mills - Square - Long Reach, Stub Flute is fully stocked in seventeen reach lengths.

  • Reduced neck diameter to avoid heeling
  • Long length design for deep cavities
  • Stub flutes for maximum rigidity
  • CNC ground in the USA
  • Center cutting
  • Solid carbide
    •
    Product Specifications
    Tool Number 861655-C3
    Cutter Diameter (Inch) 0.0550" (1.4 mm)
    Neck Diameter (Inch) 0.0535"
    Length of Cut (Inch) 0.0820"
    Overall Reach (Inch) 0.2750"
    Overall Length (Inch) 2.5000" (2-1/2)
    Flutes 4
    LOC Multiple 1.5x
    Reach Multiple 5x
    Shank Diameter (Inch) 0.1250" (1/8)
    Coating C3
