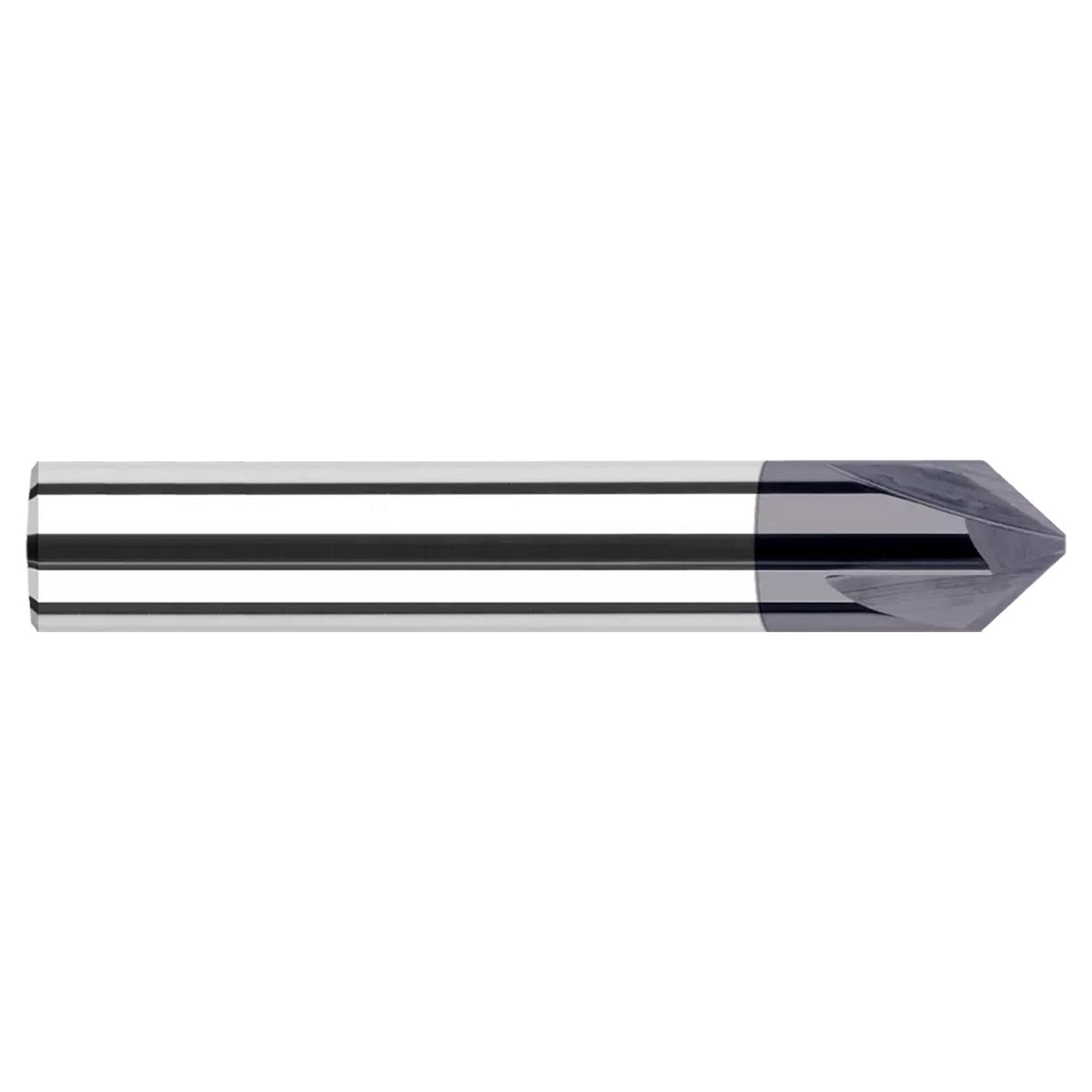

Harvey Tool's offering of pointed and flat end chamfer cutters has been engineered in three different styles: pointed, which is great for chamfering and deburring in small and narrow areas; and flat, which is non-end cutting, and optimized for profiling and chamfering larger features. End cutting which is great for blending the floor and a chamfered wall in one pass
Features- Choose from three styles: Pointed - 2 flute style for deburring and chamfering in narrow grooves, slots and small holes
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | 827875-C3 |
| Length of Cut (Inch) | 0.0420" |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Tip (Inch) | 0.0600" |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Angle per Side | 75 Degree |
| Included Angle | 150 Degree |
| Number of Flutes | 4 |
| Coating | C3 |
| Center Cutting | Yes |
| Type | III |
| Profile | Flat |
