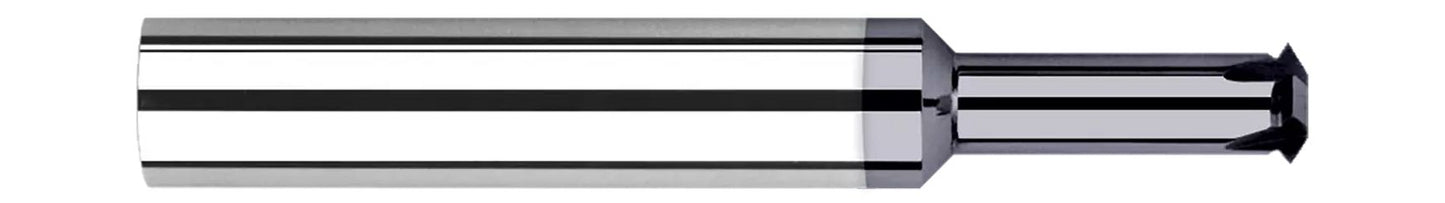

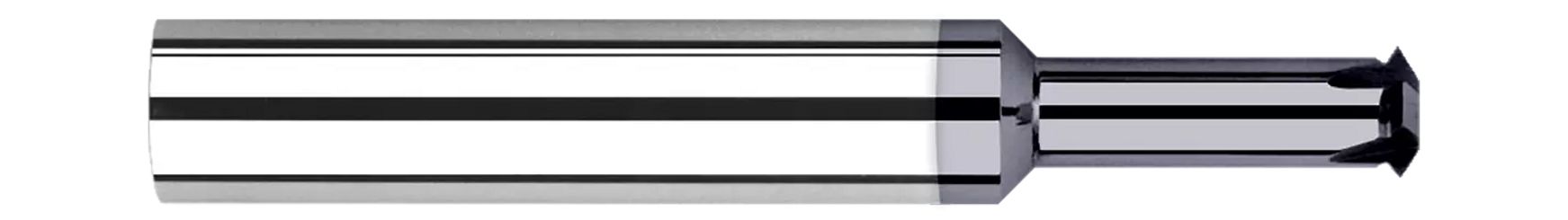

Harvey Tool 821470 | 1/2 Thread 0.3880" Diameter x 0.0800" LOC x 1/2" Shank 4 Flute 60 Degree Incuded Angle Uncoated Carbide Single Profile Thread Mill

Harvey Tool 821470 | 1/2 Thread 0.3880" Diameter x 0.0800" LOC x 1/2" Shank 4 Flute 60 Degree Incuded Angle Uncoated Carbide Single Profile Thread Mill

SKU: 25186023

$120.50 USD
$120.50 USD $120.50 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 558 Grams

View full details

This metric offering of Thread Milling Cutters - Single Form features tools intended to cut internal and external, right hand and left hand metric threads, and can mill multiple pitches.

  • Single thread form can mill multiple pitches
  • Cuts internal and external 60 Degree UN threads
  • Mills right hand and left hand threads
  • Tip of included angle ground to a point
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.3880"
Neck Diameter (Inch) 0.2500" (1/4)
Length of Cut (Inch) 0.0800"
Overall Length (Inch) 3.0000" (3)
Max Depth of Thread (Inch) 1.5000" (1-1/2)
Number of Flutes 4
Angle per Side 30
Included Angle 60
Size 1/2
Shank Diameter (Inch) 0.5000" (1/2)
Coating/Finish Uncoated
