Harvey Tool

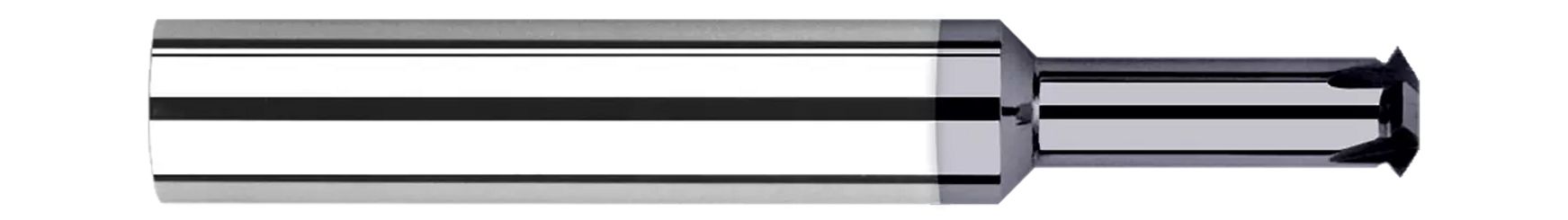

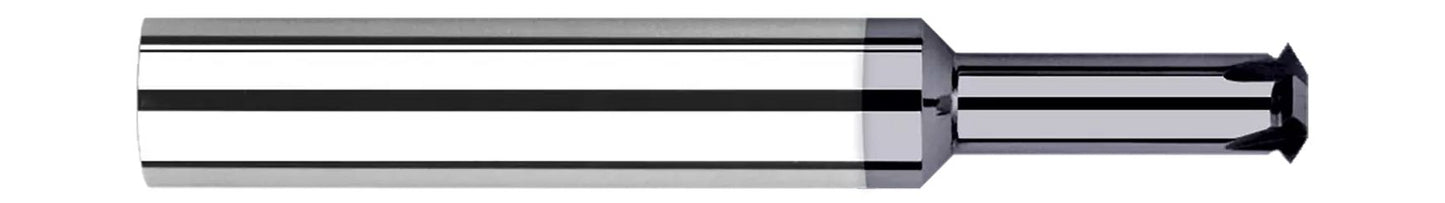

Harvey Tool 821410 | 4 Thread 0.0800" Diameter x 0.0230" LOC x 3/16" Shank 2 Flute 60 Degree Incuded Angle Uncoated Carbide Single Profile Thread Mill

Harvey Tool 821410 | 4 Thread 0.0800" Diameter x 0.0230" LOC x 3/16" Shank 2 Flute 60 Degree Incuded Angle Uncoated Carbide Single Profile Thread Mill

SKU: 25175088

$97.50 USD
$97.50 USD $97.50 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 558 Grams

View full details

This metric offering of Thread Milling Cutters - Single Form features tools intended to cut internal and external, right hand and left hand metric threads, and can mill multiple pitches.

  • Single thread form can mill multiple pitches
  • Cuts internal and external 60 Degree UN threads
  • Mills right hand and left hand threads
  • Tip of included angle ground to a point
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.0800"
Neck Diameter (Inch) 0.0400"
Length of Cut (Inch) 0.0230"
Overall Length (Inch) 2.0000" (2)
Max Depth of Thread (Inch) 0.3120" (5/16)
Number of Flutes 2
Angle per Side 30
Included Angle 60
Size 4
Shank Diameter (Inch) 0.1875" (3/16)
Coating/Finish Uncoated
Warning:

This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
