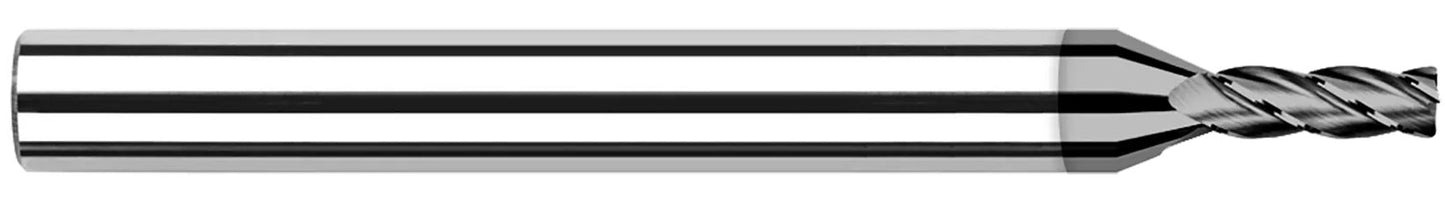

This offering of Diamond End Mills for Non-Ferrous Materials - CVD Diamond - Corner Radius - Long Reach, Stub Flute features a reduced neck geometry for clearance and maximum rigidity. Use this unique tool in graphite and composites, green carbide, and green ceramics applications.
- True crystalline CVD diamond on solid carbide substrate
- Ideal for machining graphite and composites, green carbide, and green ceramics
- Maximum abrasion resistance increases tool life
- Reduced neck for clearance and maximum rigidity
- Corner radius for improved strength
- 4 flutes
- h6 shank tolerance for high precision tool holders
- Center cutting
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.0310" (1/32) |
| Length of Cut (Inch) | 0.1560" (5/32) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Number of Flutes | 4 |
| Corner Radius | 0.0050" |
| LOC Multiple | 5x |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | C5 |
