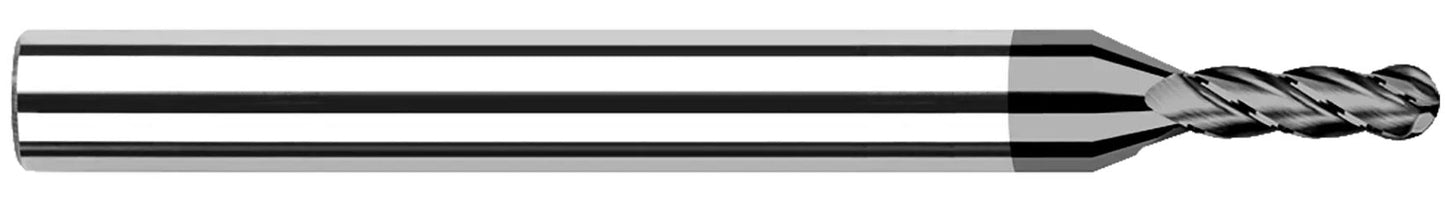

The true crystalline CVD diamond on solid carbide substrate makes this Harvey Tool offering of fully stocked Diamond End Mills for Non-Ferrous Materials - CVD Diamond - Ball outstanding in graphite, as it maximizes abrasion resistance and increases tool life.
- True crystalline CVD diamond on solid carbide substrate
- Ideal for machining graphite and composites, green carbide ,and green ceramics
- Maximum abrasion resistance increases tool life
- 4 flutes
- h6 shank tolerance for high precision tool holders
- Center cutting
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.0620" (1/16) |
| Length of Cut (Inch) | 0.2500" (1/4) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Number of Flutes | 4 |
| LOC Multiple | 4x |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | C5 |
