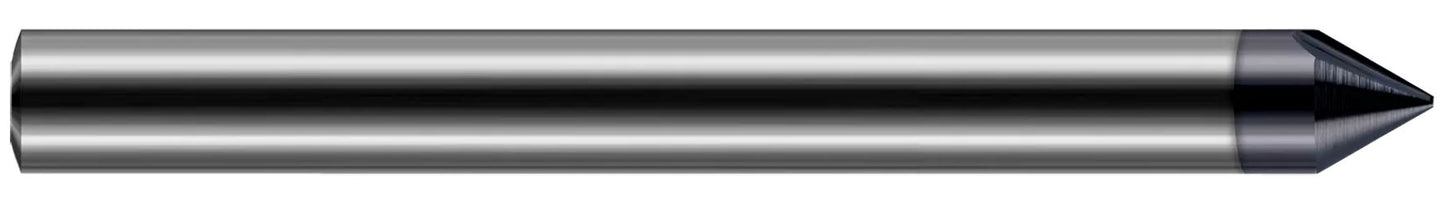

Engraving Cutters - Tip Radius - 2 Flute - For Hardened Steels is a fully stocked, solid carbide tool that features a strong 2 flute design for engraving hardened steels 46-68Rc, and an eccentric relief to increase durability and tool life.
- Strong 2 flute design for engraving hardened steels 46-68Rc
- Eccentric relief increases durability and tool life
- Tip radius end diameter and shallow flute design for improved cutting and strength
- Latest generation AlTiN Nano coating offers superior hardness and heat resistance
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.2500" (1/4) |
| Length of Cut (Inch) | 0.1900" |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Tip Flat | 0.0300" |
| Number of Flutes | 2 |
| Angle per Side | 30 |
| Included Angle | 60 |
| Flat on Part | 0.0300" |
| Type | II |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Coating/Finish | C6 |
