Product Specifications
| Manufacturer Part Number | 812610-C6 |
| Cutter Diameter (Decimal Inch) | 0.156" |
| Cutter Diameter (Inch) | 5/32" |
| Neck Diameter (Decimal Inch) | 0.152" |
| Length of Cut (Decimal Inch) | 0.235" |
| Overall Reach (Decimal Inch) | 1.250" |
| Overall Reach (Inch) | 1-1/4" |
| Overall Length (Decimal Inch) | 3.000" |
| Overall Length (Inch) | 3" |
| Corner Radius (Decimal Inch) | 0.005" |
| Number of Flute | 5 |
| LOC Multiple | (1.5x) |
| Reach Multiple | (8x) |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (Inch) | 1/4" |
| Metric | No |
| Coating | C6 |

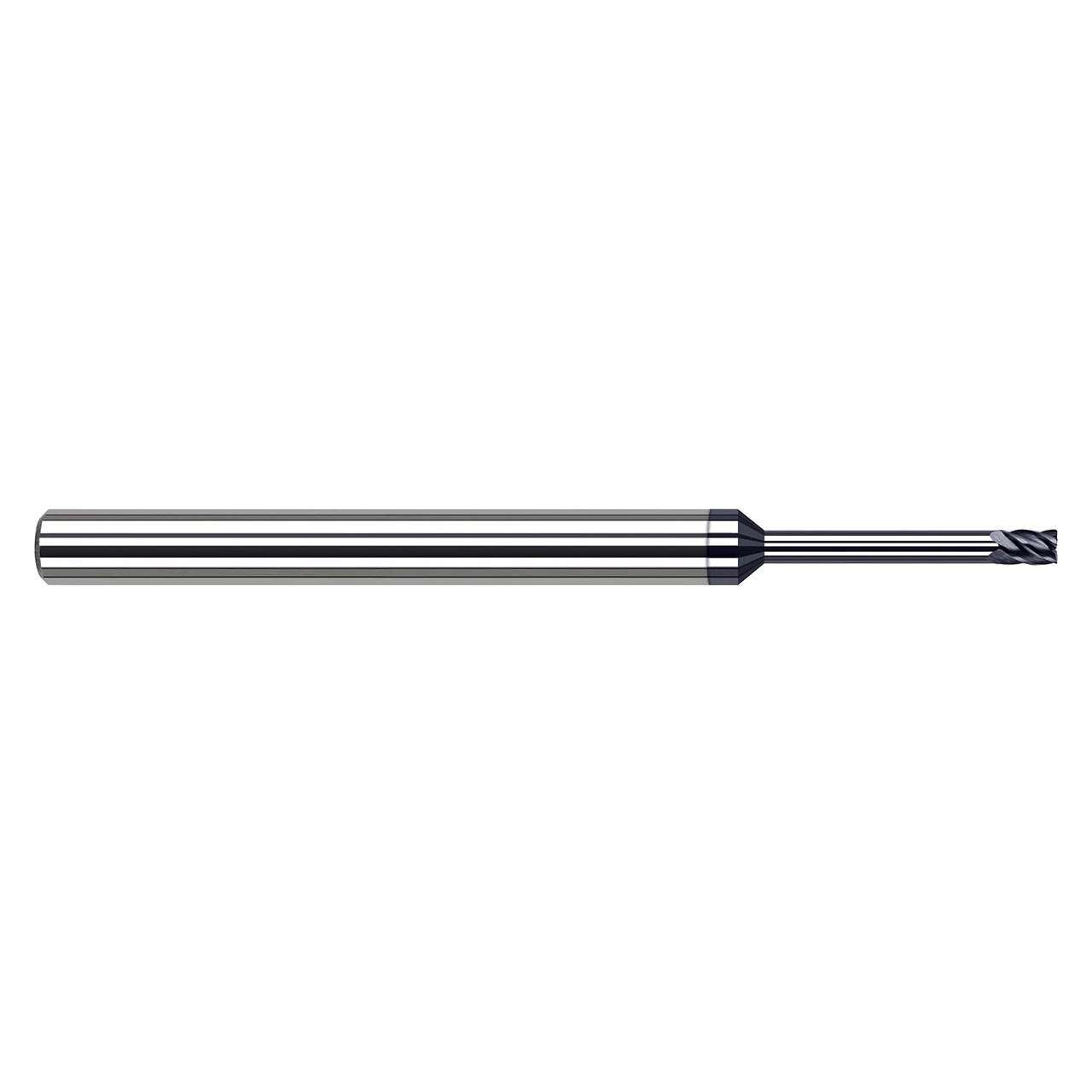

| Product Type | Corner Radius End Mill |
