Product Specifications
| Manufacturer Part Number | 812502-C6 |
| Cutter Diameter (Decimal Inch) | 0.109" |
| Cutter Diameter (Inch) | 7/64" |
| Neck Diameter (Decimal Inch) | 0.108" |
| Length of Cut (Decimal Inch) | 0.164" |
| Overall Reach (Decimal Inch) | 0.900" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (Inch) | 2-1/2" |
| Corner Radius (Decimal Inch) | 0.005" |
| Number of Flute | 5 |
| LOC Multiple | (1.5x) |
| Reach Multiple | (8x) |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (Inch) | 1/4" |
| Metric | No |
| Coating | C6 |

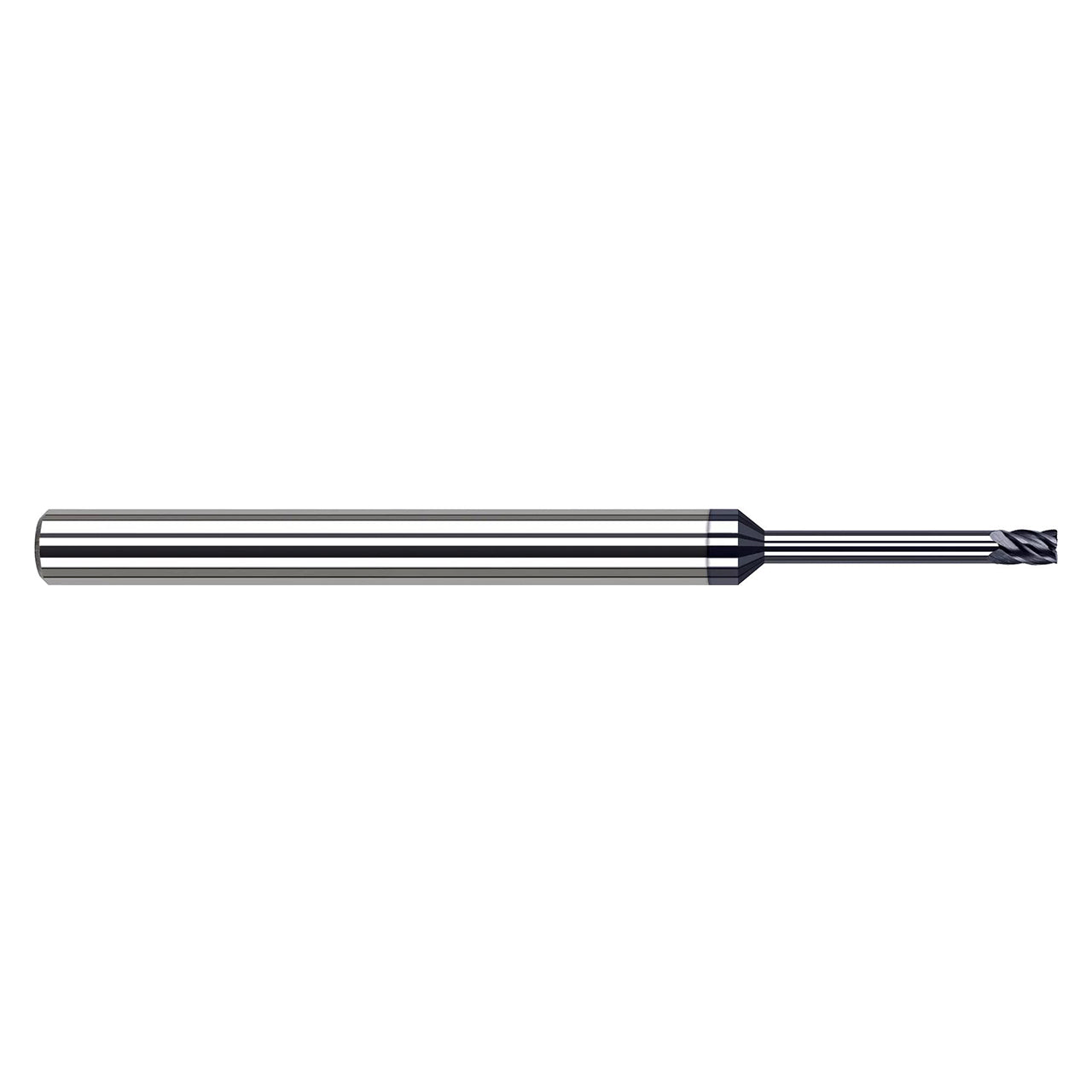

| Product Type | Corner Radius End Mill |
