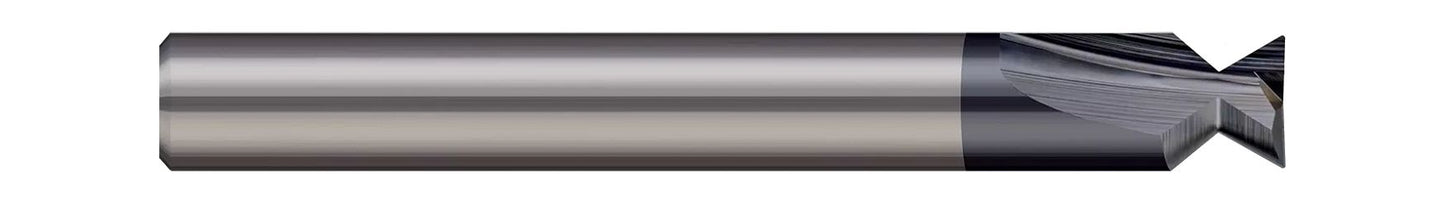

With its reduced neck for long reach machining operations, and its corner radius profile for improved strength, this solid carbide offering of Dovetail Cutters is built to last.
- Reduced neck for long reach machining
- Corner radius for improved strength
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.1875" (3/16) |
| Neck Diameter (Inch) | 0.0830" (2.1 mm) |
| Length of Cut (Inch) | 0.0930" (3/32) |
| Overall Length (Inch) | 2.0000" (2) |
| Number of Flutes | 2 |
| Corner Radius | 0.0030" |
| Angle per Side | 30 |
| Included Angle | 60 |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Coating/Finish | Uncoated |
