Product Specifications
| Manufacturer Part Number | 80963M |
| Diameter (Decimal Inch) | 0.118" |
| Diameter (mm) | 3.00mm |
| Neck Diameter (Decimal Inch) | 0.056" |
| Length of Cut (Decimal Inch) | 0.101" |
| Neck Length (Inch) | 3/16" |
| Neck Length (Decimal Inch) | 0.187" |
| Overall Reach (Decimal Inch) | 0.288" |
| Overall Length (Inch) | 1-1/2" |
| Overall Length (Decimal Inch) | 1.500" |
| Radius (Decimal Inch) | 0.059" |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.125" |
| Right Hand Teeth | 15 |
| Left Hand Teeth | 12 |
| Wrap Angle (Degree) | 270 Degree |
| Material | Carbide |
| Coating | Uncoated |

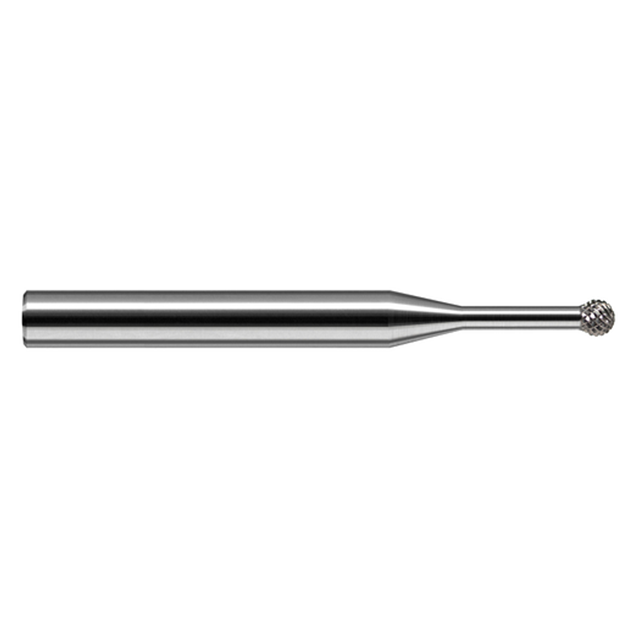

| Product Type | Deburring Undercut End Mill |
