Harvey Tool

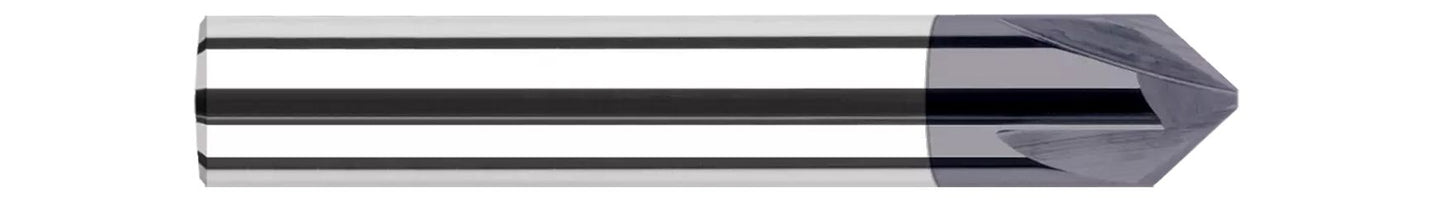

Harvey Tool 802830 | 1/8" Shank 90 Degree Included Angle 4 Flute Uncoated Carbide Chamfer Mill

Harvey Tool 802830 | 1/8" Shank 90 Degree Included Angle 4 Flute Uncoated Carbide Chamfer Mill

SKU: 25186744

Regular price $22.70 USD
Regular price $22.70 USD Sale price $22.70 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 558 Grams

In stock

Free Shipping on Orders Over $75

View full details

Flat, which is non-end cutting, and optimized for profiling and chamfering larger features.

  • Flat End - (non-cutting) multi-flute design improves tool life and finish for profiling and chamfering larger features

Product Specifications
Length of Cut (Inch) 0.0740"
Overall Length (Inch) 1.5000" (1-1/2)
Tip 0.0400"
Number of Flutes 4
Angle per Side 30
Included Angle 60
Type III
Shank Diameter (Inch) 0.1250" (1/8)
Coating/Finish Uncoated
Center Cutting Yes
