Harvey Tool

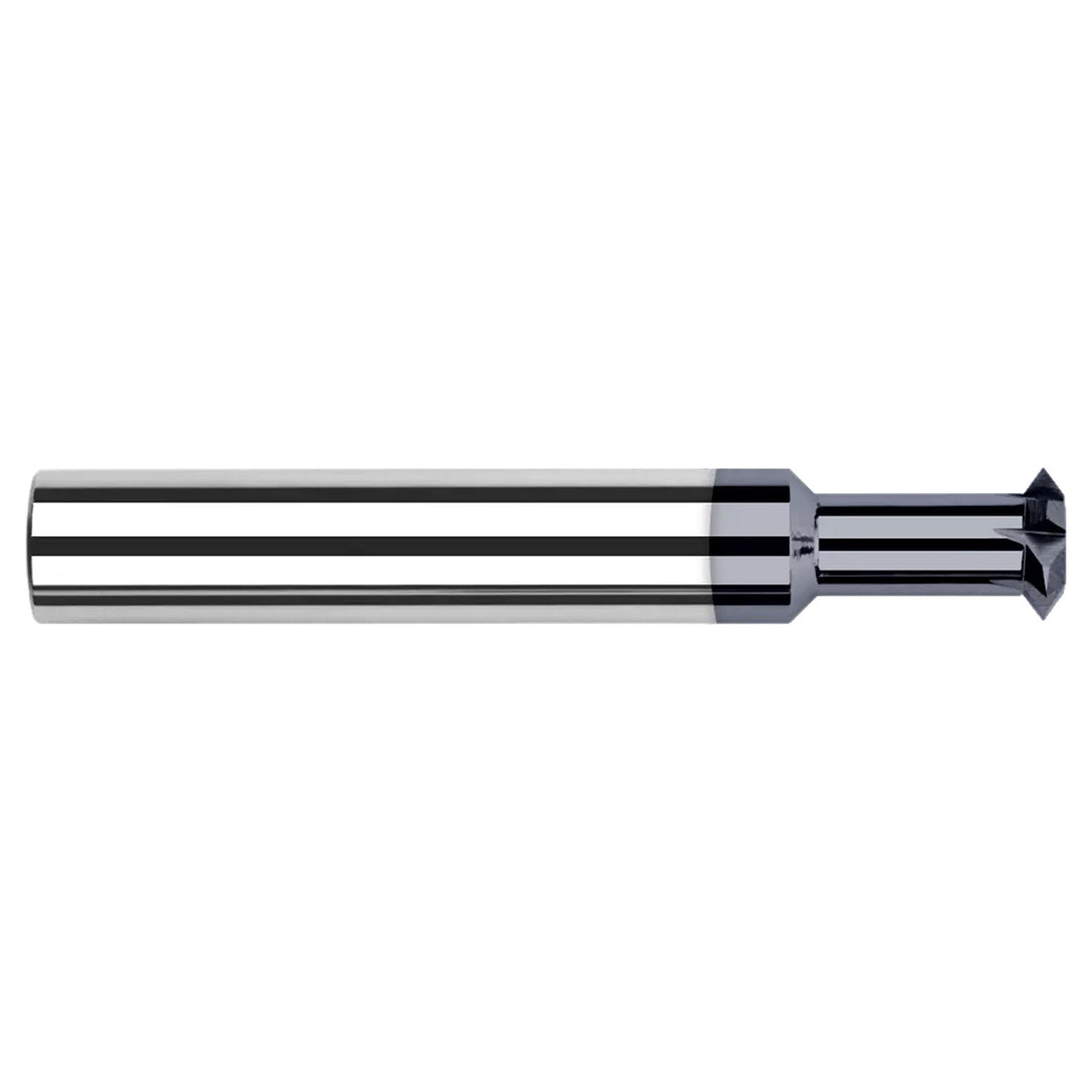

Harvey Tool 792962 | 0.0620" (1/16) Diameter x 0.0310" (1/32) Width x 0.1250" (1/8) Shank x 90 Degree Uncoated Carbide Double Angle Cutter

Harvey Tool 792962 | 0.0620" (1/16) Diameter x 0.0310" (1/32) Width x 0.1250" (1/8) Shank x 90 Degree Uncoated Carbide Double Angle Cutter

SKU: 25211443

$64.50 USD
$64.50 USD $64.50 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 9 Grams

View full details

Double Angle Shank Cutters - Pointed are ideal for back chamfering, chamfering, deburring, and milling a "V-groove" into a part. Its reduced neck allows for long reach machining operations

  • Ideal for back chamfering, chamfering, deburring, and milling a "v-groove"
  • Reduced neck for long reach machining
  • Tip of included angle ground to a point
  • CNC ground in the USA
  • Solid carbide

Product Specifications
Tool Number 792962
Cutter Diameter (Inch) 0.0620" (1/16)
Neck Diameter (Inch) 0.0310" (1/32)
Cutter Width (Inch) 0.0310" (1/32)
Neck Length (Inch) 0.2500" (1/4)
Overall Length (Inch) 1.5000" (1-1/2)
Angle per Side 45
Included Angle 90
Flutes 4
Type I
Shank Diameter (Inch) 0.1250" (1/8)
Coating Uncoated
