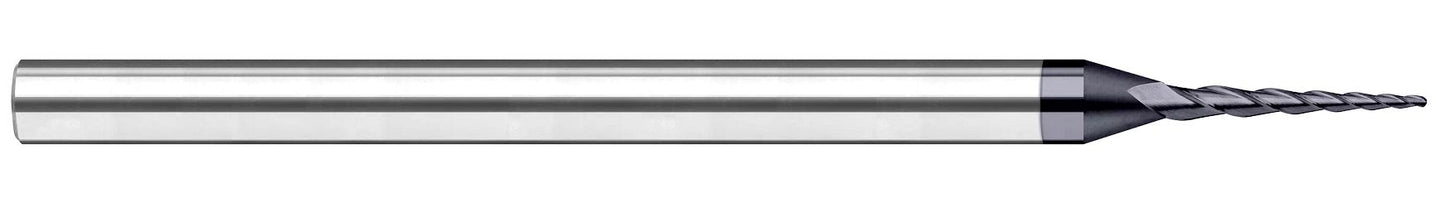

Fully stocked in .5 Degree to 15 Degree tapers, the long length design of Harvey Tool's Miniature End Mills - Tapered - Ball is designed for deep cavit machining.
- Stocked in 0.5 Degree to 15 Degree tapers
- Long length design for deep cavity machining
- 3 flutes
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.0300" |
| Length of Cut (Inch) | 0.1560" (5/32) |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Number of Flutes | 3 |
| Angle per Side | 15 |
| Included Angle | 30 |
| LOC Multiple | 5x |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | Uncoated |
