Harvey Tool

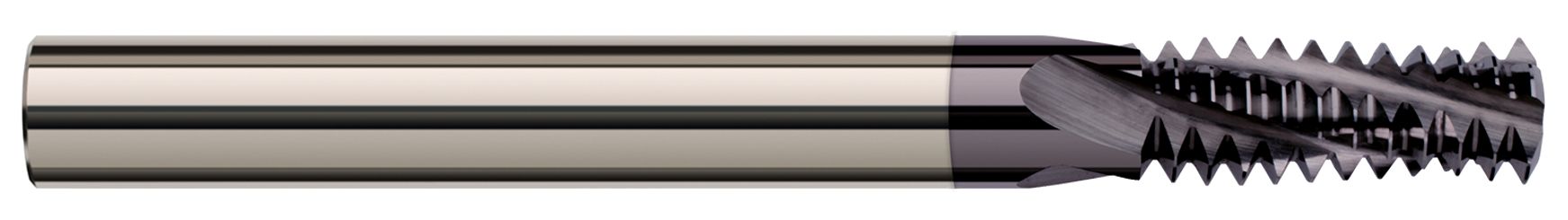

Harvey Tool 784326 | 1/2 3/4-14 Thread 0.4950" Diameter x 7/8" LOC x 1/2" Shank 4 Flute Uncoated Carbide Helical Flute Thread Mill

Harvey Tool 784326 | 1/2 3/4-14 Thread 0.4950" Diameter x 7/8" LOC x 1/2" Shank 4 Flute Uncoated Carbide Helical Flute Thread Mill

SKU: 25186614

$305.40 USD
$305.40 USD $305.40 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 558 Grams

View full details

This offering of Harvey Tool Thread Milling Cutters - Multi-Form is engineered to create internal and external National Pipe Taper (N,P.T.F.) threads. These helically fluted, solid carbide tools can cut both right and left hand threads.

  • Cuts internal and external 60Degree National Pipe Taper (N.P.T.F.) threads
  • Mills right hand and left hand threads
  • Helical flutes
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.4950"
Length of Cut (Inch) 0.8750" (7/8)
Overall Length (Inch) 3.5000" (3-1/2)
Number of Flutes 4
Angle per Side 1 Degree 47'
Included Angle 60
Size 1/2, 3/4-14
Shank Diameter (Inch) 0.5000" (1/2)
Coating/Finish Uncoated
