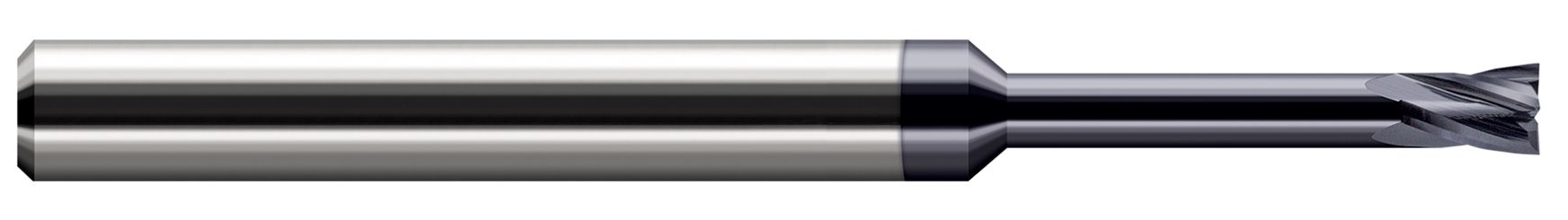

This 4 flute, square profile offering of Backdraft Cutters is optimized for cleaning up the bottom corner of pockets, and features a backdraft angle to reduce rubbing.
- Designed to clean up bottom corner of pockets while backdraft angle minimizes rubbing
- 4 helical flutes (20 Degree helix)
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.1870" (3/16) |
| Neck Diameter (Inch) | 0.1770" (4.5 mm) |
| Length of Cut (Inch) | 0.2850" |
| Overall Reach (Inch) | 1.0000" (1) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Number of Flutes | 4 |
| Angle per Side | 3.0 |
| Included Angle | 6.0 |
| LOC Multiple | 1.5x |
| Reach Multiple | 5x |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Coating/Finish | Uncoated |
