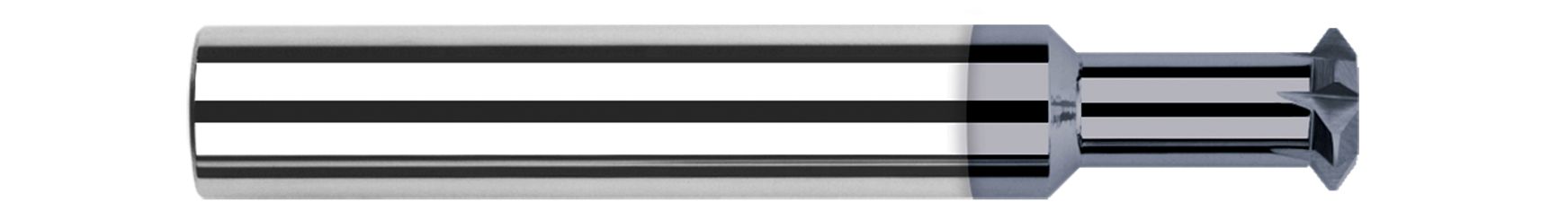

This offering of Harvey Tool Double Angle Shank Cutters, featuring a tip flat, is engineered to improve strength and wear resistance and feature a reduced neck for long reach machining. Use this tool for back chamfering, chamfering, deburring, and milling a "V groove" into parts.
- Ideal for back chamfering, chamfering, deburring, and milling a V-groove
- Flat on tip for improved strength and wear resistance
- Reduced neck for long reach machining
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.1875" (3/16) |
| Neck Diameter (Inch) | 0.0930" (3/32) |
| Cutter Width (Inch) | 0.0650" |
| Neck Length (Inch) | 0.3120" (5/16) |
| Overall Length (Inch) | 2.0000" (2) |
| Tip Flat | 0.0100" |
| Number of Flutes | 4 |
| Angle per Side | 30 |
| Included Angle | 60 |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Coating/Finish | Uncoated |
