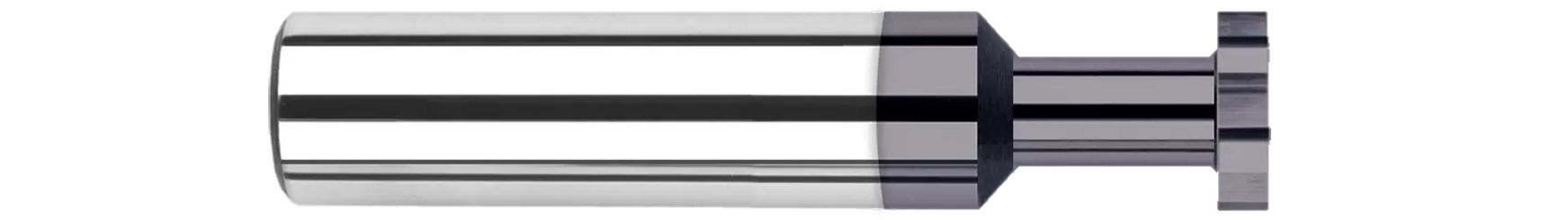

Harvey Tool has long offered the industry's best selection of Keyseat Cutters. Its line of square profile Keyseat Cutters are offered in three unique styles: Standard Slotting, Deep Slotting, or Max Slotting, allowing machinists to select the tool most appropriate for their application.
- Keyseat Cutters Down to 1/16" Diameter
- Both sides of cutter are dished for clearance
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.1180" (3 mm) |
| Neck Diameter (Inch) | 0.0590" (1.5 mm) |
| Cutter Width (Inch) | 0.0470" (3/64) |
| Neck Length (Inch) | 0.1870" (3/16) |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Radial Depth of Cut (Inch) | 0.0195" |
| Number of Flutes | 4 |
| Reach Multiple | 1.5x |
| Type | I |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | Uncoated |
