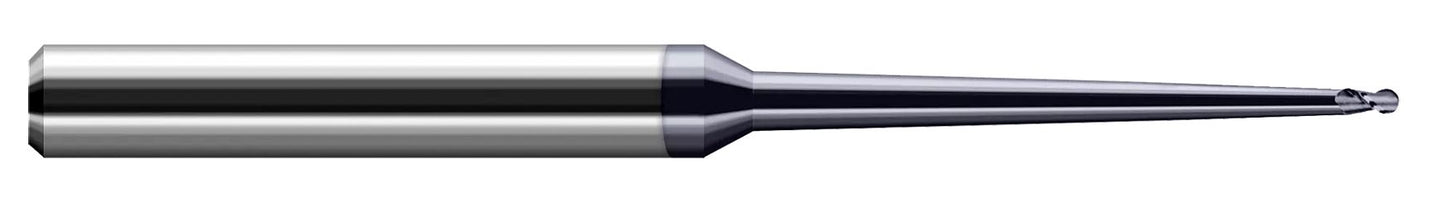

Offered in uncoated, AlTiN Nano coated, and Amorphous Diamond coated styles, Harvey Tool's Miniature End Mills - Ball - Tapered Reach (Clearance Cutters) are designed for deep cavity profiling, and feature a 2 Degree tapered neck design to minimize deflection and maximize wall clearance.
- Designed for deep cavity profiling
- 2 Degree tapered neck design minimizes deflection and maximizes wall clearance
- Length of cut = 1-½ x diameter
- Neck behind length of cut is reduced for 1x diameter
- h6 shank tolerance for high precision tool holders
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.1875" (3/16) |
| Neck Diameter (Inch) | 0.2670" |
| Minor Diameter (Inch) | 0.1770" (4.5 mm) |
| Length of Cut (Inch) | 0.2810" (9/32) |
| Neck Length (Inch) | 0.1875" (3/16) |
| Tapered Reach (Inch) | 1.7500" (1-3/4) |
| Overall Reach (Inch) | 2.0000" (2) |
| Overall Length (Inch) | 4.0000" (4) |
| Number of Flutes | 4 |
| Neck Angle | 2 |
| LOC Multiple | 1.5x |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Coating/Finish | Uncoated |
