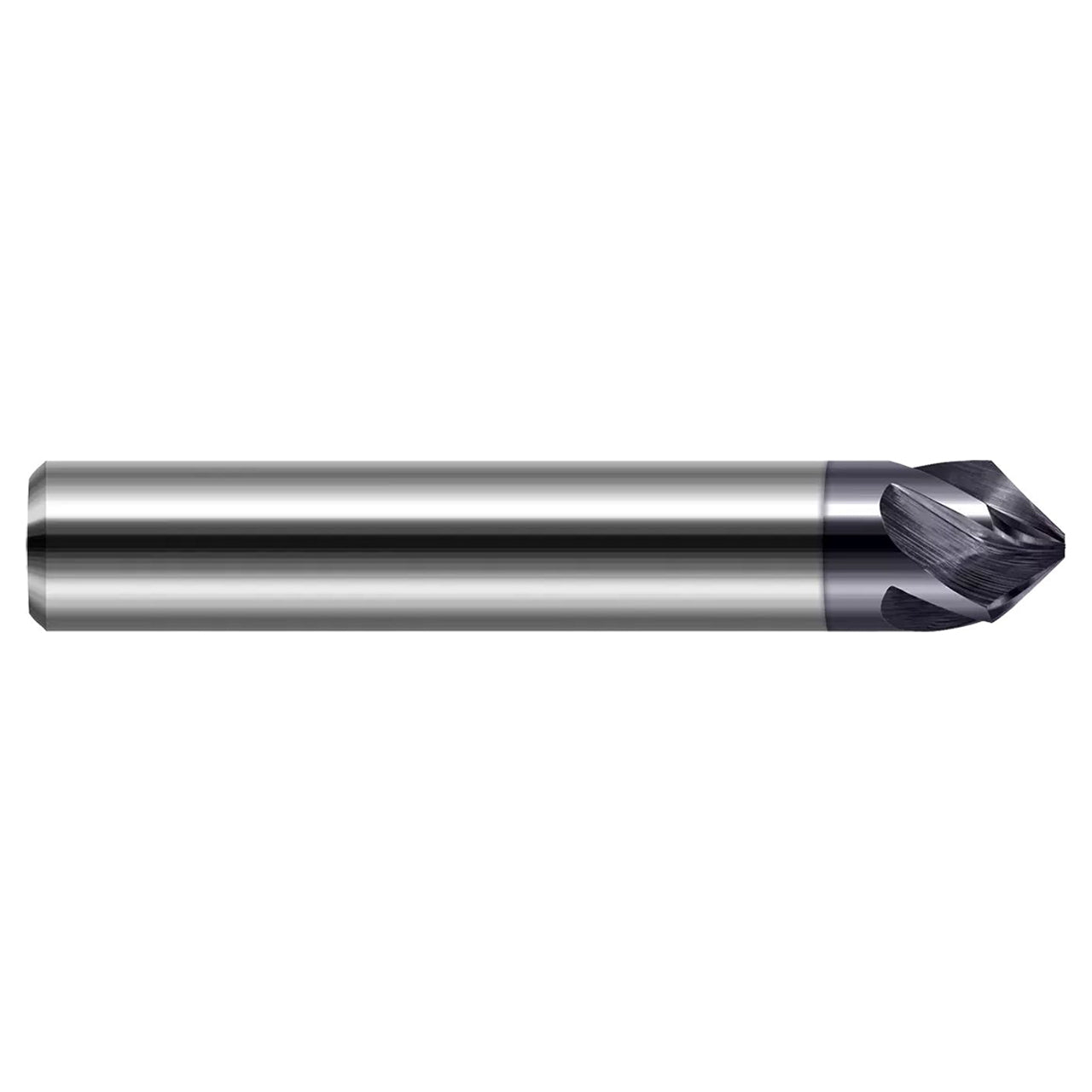

This Harvey Tool offering of chamfer cutters - pointed & flat end - helical flutes are stocked in styles with between 2 and 5 flutes and 6 angles per side, ranging from 15 Degree to 60 Degree, allowing for superior performance in both pointed and flat end styles.
Features- Specialized helical flute design for superior performance
- Free cutting action provides excellent surface finish and chip evacuation
- Offered in Type I pointed, Type II flat end (non-cutting) styles and Type III end cutting
- 2, 3, 4, and 5, flute options
- h6 shank tolerance for high precision tool holders
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | 773624 |
| Length of Cut (Inch) | 0.1530" |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Tip (Inch) | 0.0700" |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Angle per Side | 45 Degree |
| Included Angle | 90 Degree |
| Number of Flutes | 5 |
| Coating | Uncoated |
| Type | III |
| Profile | Flat |
