Harvey Tool

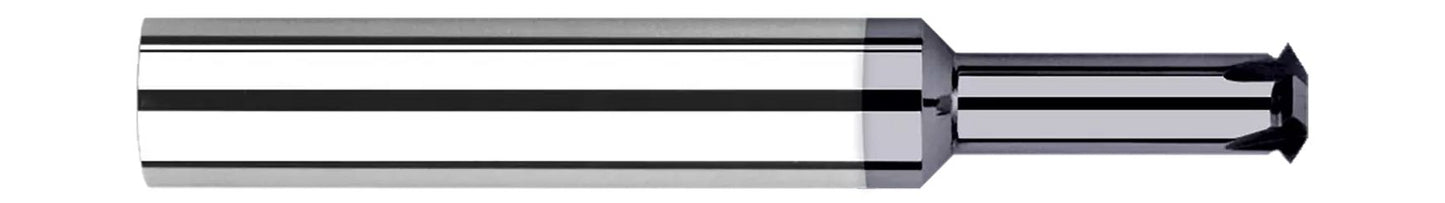

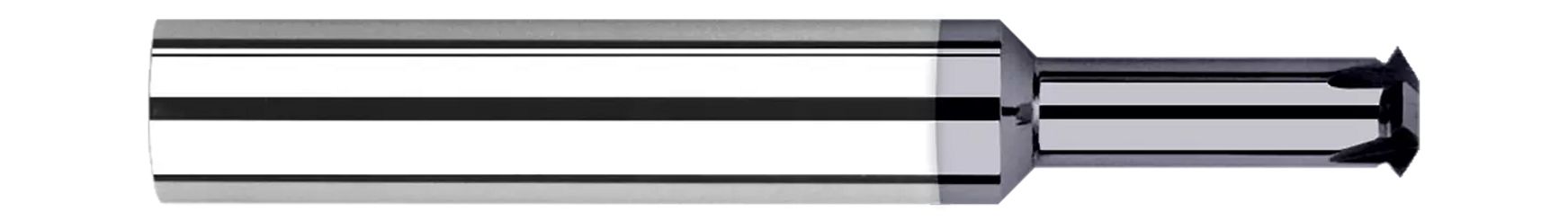

Harvey Tool 771840-C3 | 10 Thread 0.1350" Diameter x 0.0380" LOC x 1/4" Shank 4 Flute 60 Degree Incuded Angle AlTiN Coated Carbide Single Profile Thread Mill

Harvey Tool 771840-C3 | 10 Thread 0.1350" Diameter x 0.0380" LOC x 1/4" Shank 4 Flute 60 Degree Incuded Angle AlTiN Coated Carbide Single Profile Thread Mill

SKU: 25186943

$116.40 USD
$116.40 USD $116.40 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 18 Grams

View full details

This metric offering of Thread Milling Cutters - Single Form features tools intended to cut internal and external, right hand and left hand metric threads, and can mill multiple pitches.

  • Single thread form can mill multiple pitches
  • Cuts internal and external 60 Degree UN threads
  • Mills right hand and left hand threads
  • Tip of included angle ground to a point
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.1350"
Neck Diameter (Inch) 0.0700"
Length of Cut (Inch) 0.0380"
Overall Length (Inch) 2.5000" (2-1/2)
Max Depth of Thread (Inch) 0.7500" (3/4)
Number of Flutes 4
Angle per Side 30
Included Angle 60
Size 10
Shank Diameter (Inch) 0.2500" (1/4)
Coating/Finish C3
