Product Specifications
| Manufacturer Part Number | 76878-C4 |
| Diameter (Inch) | 5/64" |
| Diameter (Decimal Inch) | 0.078" |
| Neck Diameter (Decimal Inch) | 0.077" |
| Length of Cut (Inch) | 15/64" |
| Length of Cut (Decimal Inch) | 0.234" |
| Neck Length (Decimal Inch) | 0.266" |
| Overall Reach (Inch) | 1/2" |
| Overall Reach (Decimal Inch) | 0.500" |
| Overall Length (Inch) | 1-1/2" |
| Overall Length (Decimal Inch) | 1.500" |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.125" |
| Number of Flutes | 4 |
| Material | Carbide |
| Coating | Amorphous Diamond |

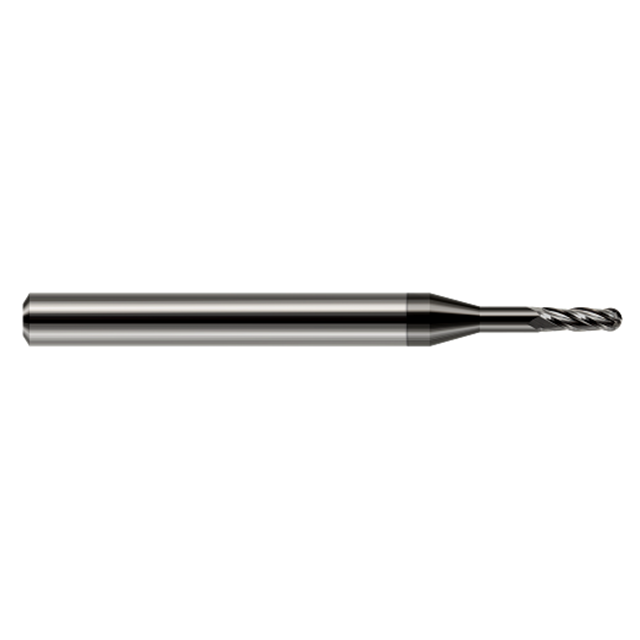

| Product Type | Miniature Ball End Mill |
