Product Specifications
| Manufacturer Part Number | 767924 |
| Diameter (Inch) | 3/8" |
| Diameter (Decimal Inch) | 0.375" |
| Neck Diameter (Inch) | 11/64" |
| Neck Diameter (Decimal Inch) | 0.172" |
| Length of Cut (Decimal Inch) | 0.349" |
| Neck Length (Inch) | 1-5/8" |
| Neck Length (Decimal Inch) | 1.625" |
| Overall Reach (Decimal Inch) | 1.975" |
| Overall Length (Inch) | 4" |
| Overall Length (Decimal Inch) | 4.000" |
| Radius (Inch) | 3/16" |
| Radius (Decimal Inch) | 0.188" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.375" |
| Wrap Angle (Degree) | 300 Degree |
| Number of Flutes | 4 |
| Material | Carbide |
| Coating | Uncoated |

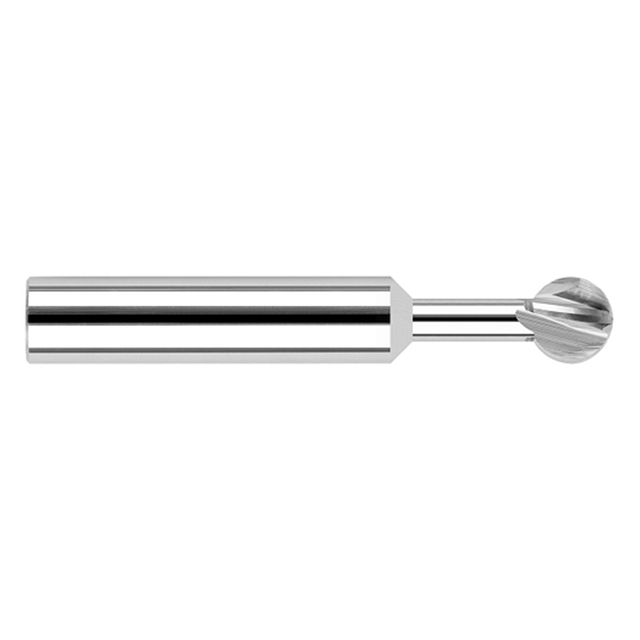

| Product Type | Undercutting End Mill |
