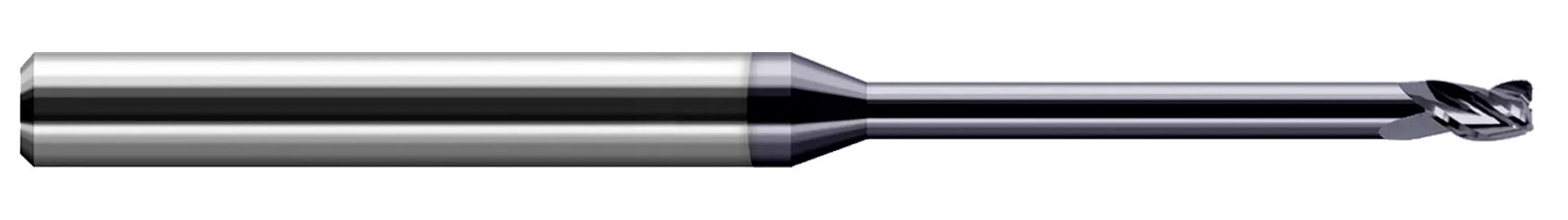

The corner radius profile featured in this collection of Harvey Tool Miniature End Mills - Corner Radius - Stub & Standard adds strength to the tool.
- Corner radius for improved strength
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.1875" (3/16) |
| Neck Diameter (Inch) | 0.1830" |
| Length of Cut (Inch) | 0.2810" (9/32) |
| Overall Reach (Inch) | 1.1560" (1-5/32) |
| Overall Length (Inch) | 3.0000" (3) |
| Number of Flutes | 3 |
| Corner Radius | 0.0300" |
| LOC Multiple | 1.5x |
| Reach Multiple | 6x |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Coating/Finish | Uncoated |
