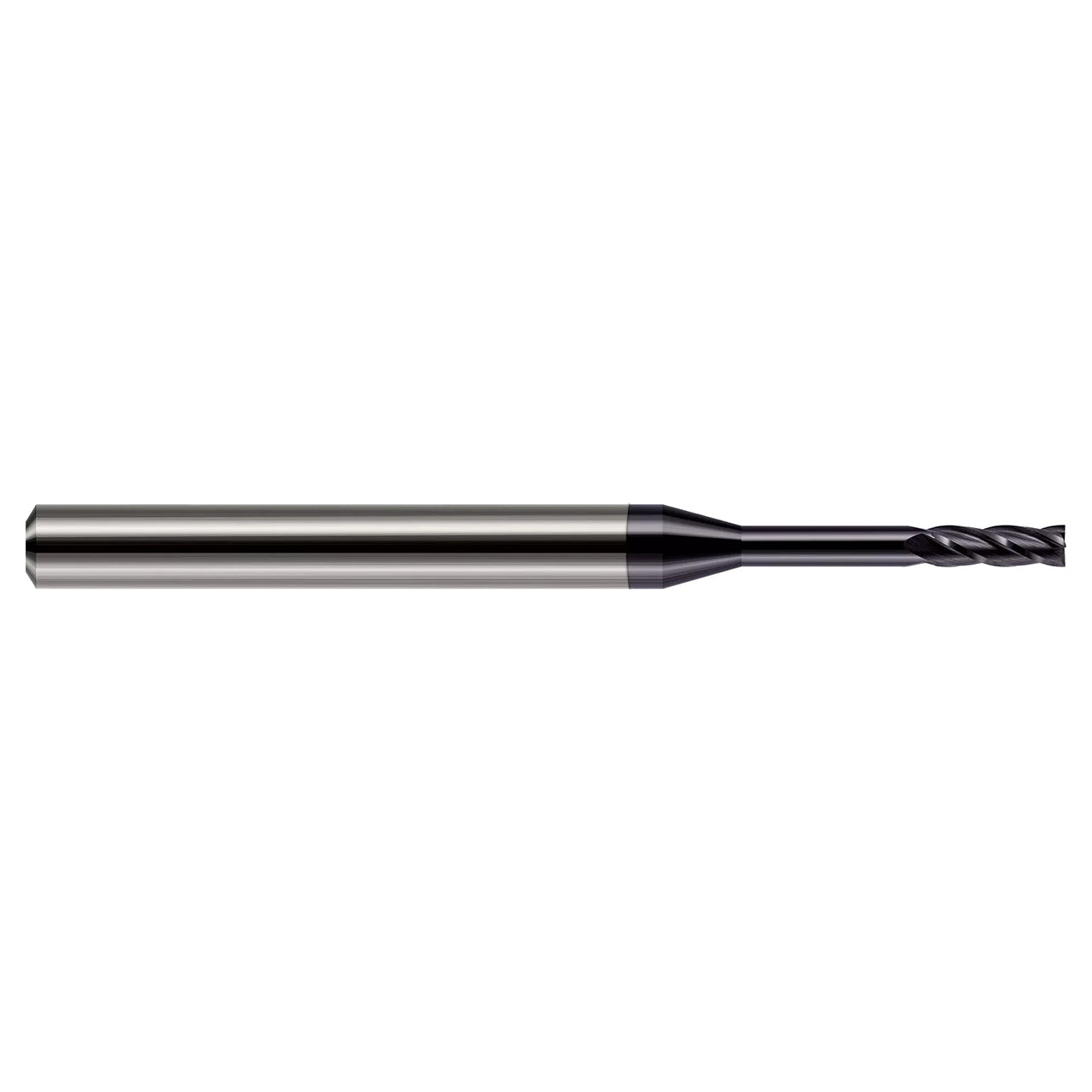

Miniature end mills - square - long reach, standard flute feature a reduced neck diameter to avoid heeling.
Features- Length of Cut = 3x Diameter
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | 76435-C4 |
| Cutter Diameter (Inch) | 0.0350" |
| Cutter Diameter (mm) | 0.9mm |
| Neck Diameter (Inch) | 0.0340" |
| Length of Cut (Inch) | 0.1050" |
| Overall Reach (Inch) | 0.3150" |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Number of Flutes | 4 |
| LOC Multiple | (3x) |
| Reach Multiple | (9x) |
| Coating | C4 |
| Profile | Square |
