Harvey Tool

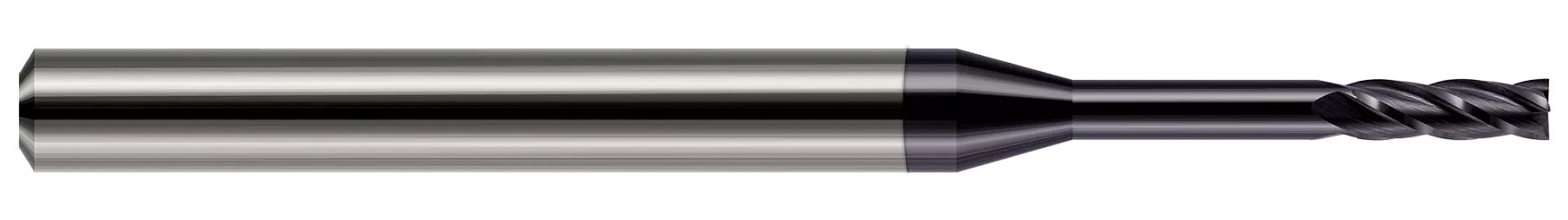

Harvey Tool 76431-C4 | 1/32" Diameter x 1/8" Shank x 3/32" LOC x 1-1/2" OAL 4 Flute Amorphous Diamond Coated Carbide Square End Mill

Harvey Tool 76431-C4 | 1/32" Diameter x 1/8" Shank x 3/32" LOC x 1-1/2" OAL 4 Flute Amorphous Diamond Coated Carbide Square End Mill

SKU: 25186396

$56.90 USD
$56.90 USD $56.90 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 5 Grams

View full details

CNC ground in the USA, Harvey Tool's solid carbide Router Style Miniature End Mills are offered in 2 or 4 flute styles and feature a square profile, router style shank, and tighter overall length tolerances for quick and consistent CNC tool changes.

  • Router style shank and tight overall length for quick and consistent tool changes
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.0310" (1/32)
Neck Diameter (Inch) 0.0300"
Length of Cut (Inch) 0.0930" (3/32)
Neck Length (Inch) 0.1860"
Overall Reach (Inch) 0.2790"
Overall Length (Inch) 1.5000" (1-1/2)
Number of Flutes 4
LOC Multiple 3x
Reach Multiple 9x
Shank Diameter (Inch) 0.1250" (1/8)
Coating/Finish C4
