Harvey Tool

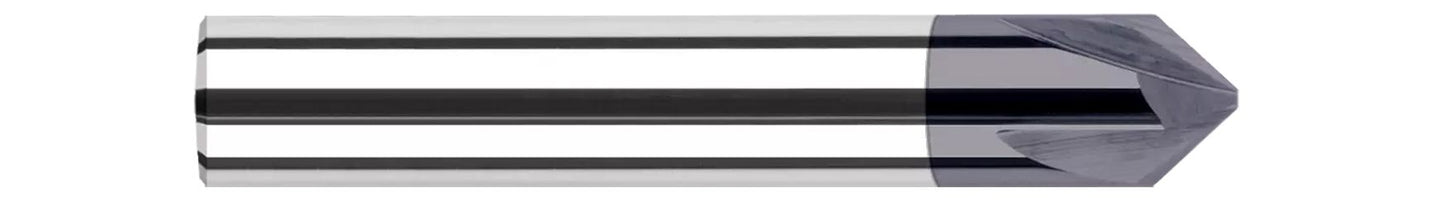

Harvey Tool 763645-C3 | 5/8" Shank 90 Degree Included Angle 4 Flute AlTiN Coated Carbide Chamfer Mill

Harvey Tool 763645-C3 | 5/8" Shank 90 Degree Included Angle 4 Flute AlTiN Coated Carbide Chamfer Mill

SKU: 25186794

Regular price $128.80 USD
Regular price $128.80 USD Sale price $128.80 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 236 Grams

In stock

Free Shipping on Orders Over $75

View full details

Flat, which is non-end cutting, and optimized for profiling and chamfering larger features.

  • Flat End - (non-cutting) multi-flute design improves tool life and finish for profiling and chamfering larger features

Product Specifications
Length of Cut (Inch) 0.2730"
Overall Length (Inch) 3.5000" (3-1/2)
Tip 0.0800"
Number of Flutes 4
Angle per Side 45
Included Angle 90
Type II
Shank Diameter (Inch) 0.6250" (5/8)
Coating/Finish C3
