Product Specifications
| Manufacturer Part Number | 761430 |
| Cutter Diameter (mm) | 4.80mm |
| Neck Diameter (mm) | 2.88mm |
| Length of Cut (mm) | 1.11mm |
| Overall Length (mm) | 63.00mm |
| Maximum Depth of Thread (mm) | 29.00mm |
| Angle per Side (Degree) | 30 Degree |
| Included Angle (Degree) | 60 Degree |
| Number of Flutes | 4 |
| Size | M6 |
| Reach Multiple | (10x) |
| Shank Diameter (mm) | 6.00mm |
| Coating | Uncoated |

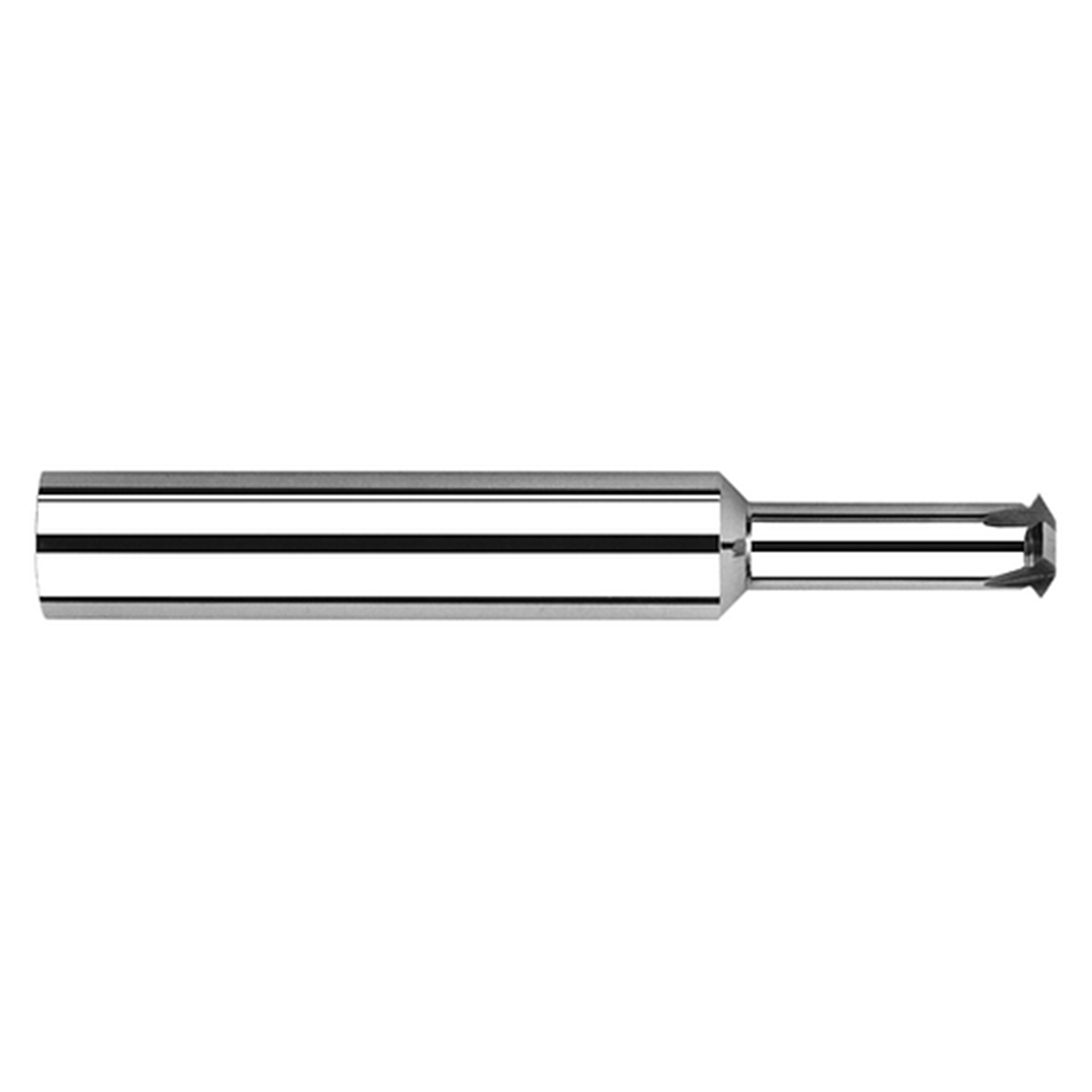

| Product Type | Thread Milling Cutter |
