Product Specifications
| Manufacturer Part Number | 761428 |
| Cutter Diameter (mm) | 4.00mm |
| Neck Diameter (mm) | 2.40mm |
| Length of Cut (mm) | 0.92mm |
| Overall Length (mm) | 50.00mm |
| Maximum Depth of Thread (mm) | 24.00mm |
| Angle per Side (Degree) | 30 Degree |
| Included Angle (Degree) | 60 Degree |
| Number of Flutes | 4 |
| Size | M5 |
| Reach Multiple | (10x) |
| Shank Diameter (mm) | 4.00mm |
| Coating | Uncoated |

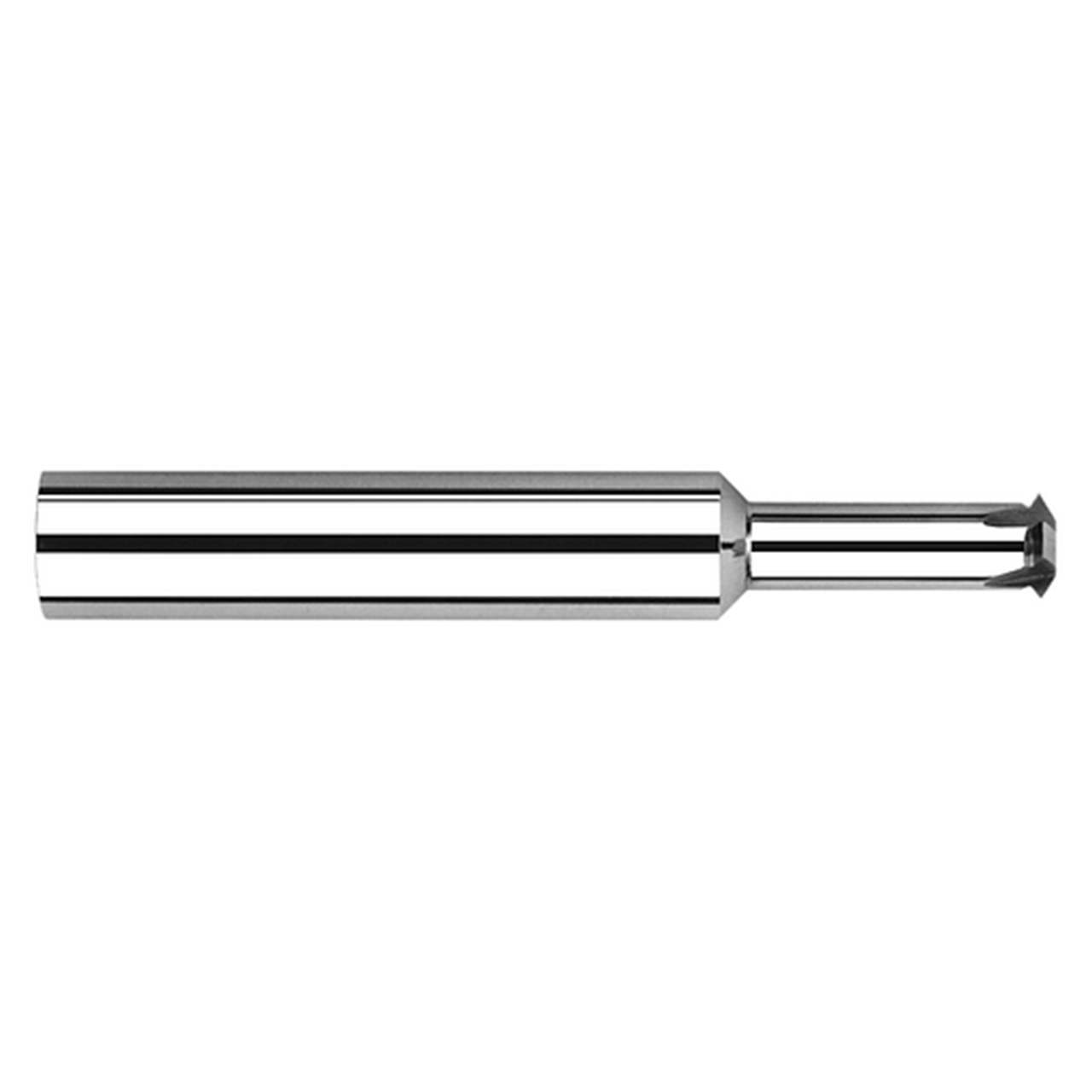

| Product Type | Thread Milling Cutter |
