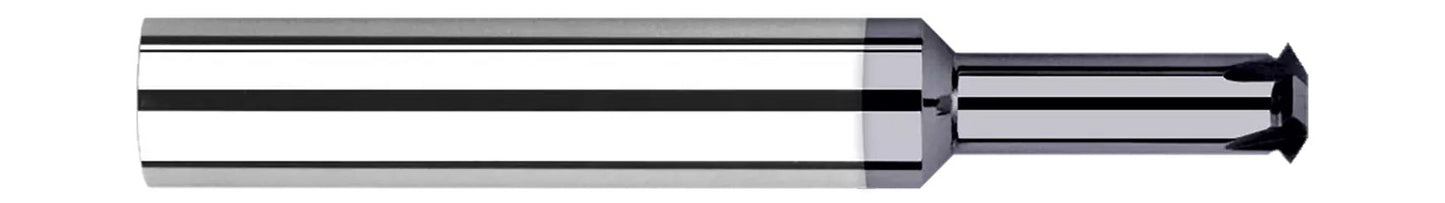

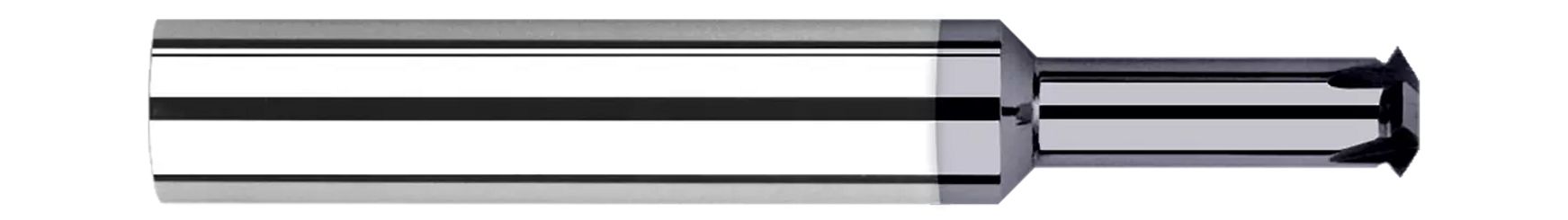

Harvey Tool 761419 | M2 Thread 1.500 mm Diameter x 0.346 mm LOC x 3 mm Shank 2 Flute 60 Degree Incuded Angle Uncoated Carbide Single Profile Thread Mill

Harvey Tool 761419 | M2 Thread 1.500 mm Diameter x 0.346 mm LOC x 3 mm Shank 2 Flute 60 Degree Incuded Angle Uncoated Carbide Single Profile Thread Mill

SKU: 25185848

$99.30 USD
$99.30 USD $99.30 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 558 Grams

View full details

This metric offering of Thread Milling Cutters - Single Form features tools intended to cut internal and external, right hand and left hand metric threads, and can mill multiple pitches.

  • Single thread form can mill multiple pitches
  • Cuts internal and external 60 Degree UN threads
  • Mills right hand and left hand threads
  • Tip of included angle ground to a point
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (mm) 1.500 mm
Neck Diameter (mm) 0.900 mm
Length of Cut (mm) 0.346 mm
Overall Length (mm) 38.000 mm
Max Depth of Thread (mm) 9.000 mm
Number of Flutes 2
Angle per Side 30
Included Angle 60
Reach Multiple 10x
Size M2
Shank Diameter (mm) 3.000 mm
Metric Yes
Coating/Finish Uncoated
