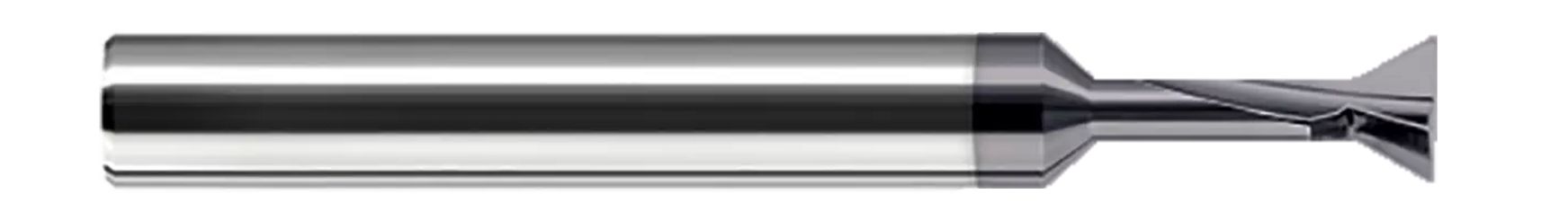

With its reduced neck for long reach machining operations, and its corner radius profile for improved strength, this solid carbide offering of Dovetail Cutters is built to last.
- Reduced neck for long reach machining
- Corner radius for improved strength
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.1250" (1/8) |
| Neck Diameter (Inch) | 0.0530" |
| Length of Cut (Inch) | 0.0930" (3/32) |
| Neck Length (Inch) | 0.1250" (1/8) |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Number of Flutes | 2 |
| Corner Radius | 0.0100" |
| Angle per Side | 24 |
| Included Angle | 48 |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | Uncoated |
