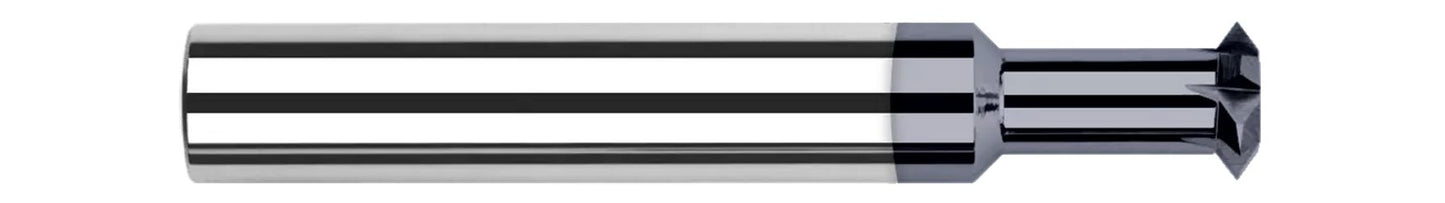

Harvey Tool 759916-C3 | 1/4" Diameter x 0.1670" Width x 1/4" Shank 90 Degree Included Angle AlTiN Coated Carbide Pointed Double Angle Cutter

Harvey Tool 759916-C3 | 1/4" Diameter x 0.1670" Width x 1/4" Shank 90 Degree Included Angle AlTiN Coated Carbide Pointed Double Angle Cutter

SKU: 25186380

$78.60 USD
$78.60 USD $78.60 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 23 Grams

View full details

Double Angle Shank Cutters - Pointed are ideal for back chamfering, chamfering, deburring, and milling a "V-groove" into a part. Its reduced neck allows for long reach machining operations, while its 60 Degree angle allows it to be used for thread milling, as well.

  • Ideal for back chamfering, chamfering, deburring, and milling a "v-groove"
  • Reduced neck for long reach machining
  • Tip of included angle ground to a point
  • 60 Degree angle can also be used for thread milling
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.2500" (1/4)
Neck Diameter (Inch) 0.0830" (2.1 mm)
Cutter Width (Inch) 0.1670"
Neck Length (Inch) 0.3120" (5/16)
Overall Length (Inch) 2.0000" (2)
Number of Flutes 4
Angle per Side 45
Included Angle 90
Type II
Shank Diameter (Inch) 0.2500" (1/4)
Coating/Finish C3
