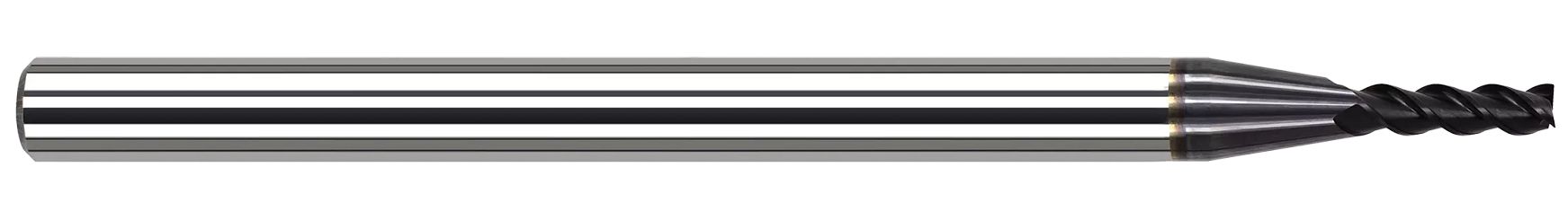

Offered fully stocked in cutter diameter sizes ranging from .2 mm to 1/2", this comprehensive selection of Harvey Tool corner radius profile Variable Helix End Mills is optimized for readily machinable medium alloy steels, stainless steels, and tool steels.
- Variable helix design reduces chatter and harmonics, and increases material removal rates
- AlTiN Coated for improved lubricity and heat resistance
- h6 shank tolerance for shrink fit holders
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.0620" (1/16) |
| Length of Cut (Inch) | 0.3120" (5/16) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Number of Flutes | 3 |
| Corner Radius | 0.0050" |
| LOC Multiple | 5x |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | C3 |
