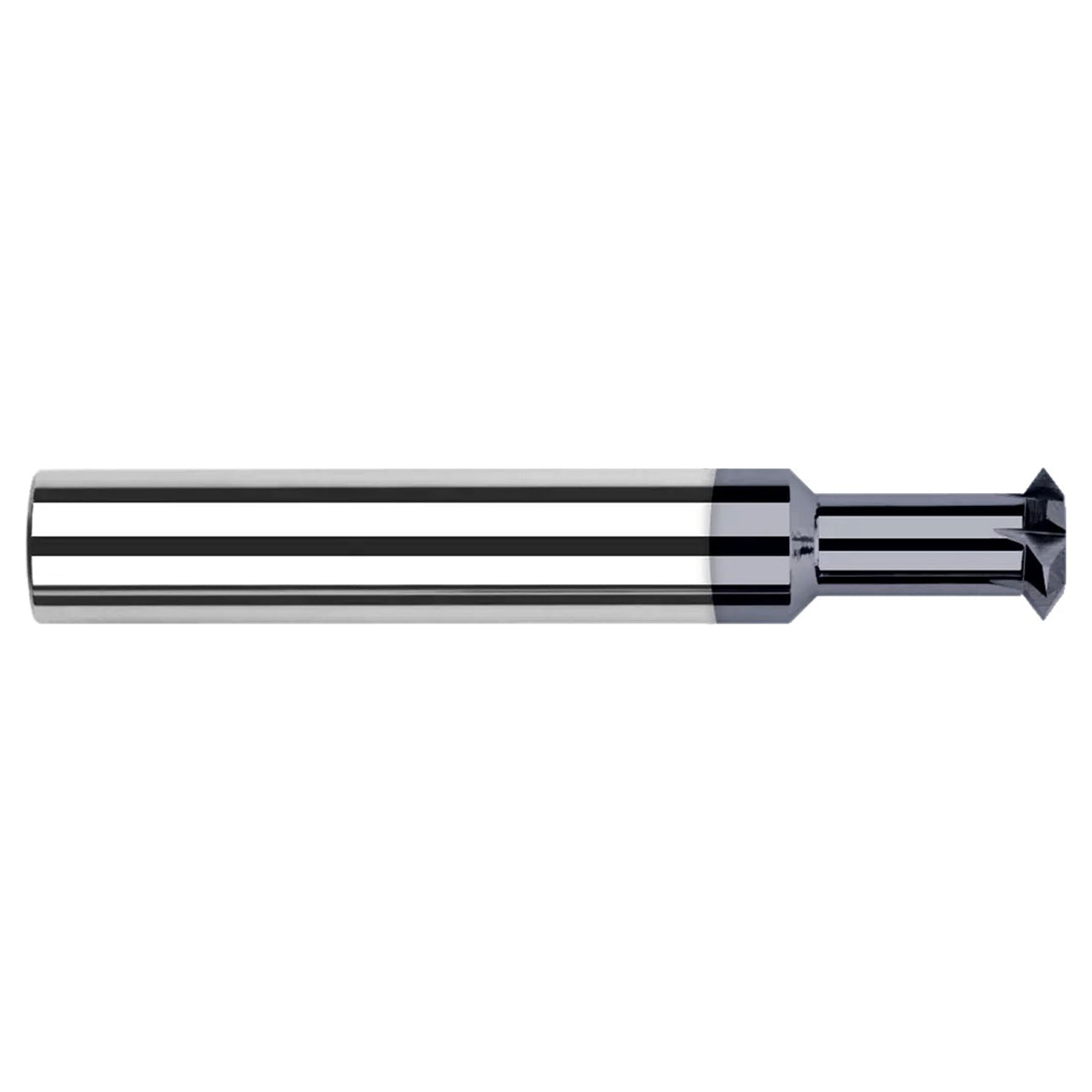

Harvey Tool 755912-C3 | 0.1875" (3/16) Diameter x 0.0950" Width x 0.1875" (3/16) Shank x 90 Degree AlTiN Coated Carbide Double Angle Cutter

Harvey Tool 755912-C3 | 0.1875" (3/16) Diameter x 0.0950" Width x 0.1875" (3/16) Shank x 90 Degree AlTiN Coated Carbide Double Angle Cutter

SKU: 25211393

$88.60 USD
$88.60 USD $88.60 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 9 Grams

View full details

Double Angle Shank Cutters - Pointed are ideal for back chamfering, chamfering, deburring, and milling a "V-groove" into a part. Its reduced neck allows for long reach machining operations

  • Ideal for back chamfering, chamfering, deburring, and milling a "v-groove"
  • Reduced neck for long reach machining
  • Tip of included angle ground to a point
  • CNC ground in the USA
  • Solid carbide

Product Specifications
Tool Number 755912-C3
Cutter Diameter (Inch) 0.1875" (3/16)
Neck Diameter (Inch) 0.0930" (3/32)
Cutter Width (Inch) 0.0950"
Neck Length (Inch) 1.0000" (1)
Overall Length (Inch) 2.5000" (2-1/2)
Angle per Side 45
Included Angle 90
Flutes 6
Type I
Shank Diameter (Inch) 0.1875" (3/16)
Coating C3
