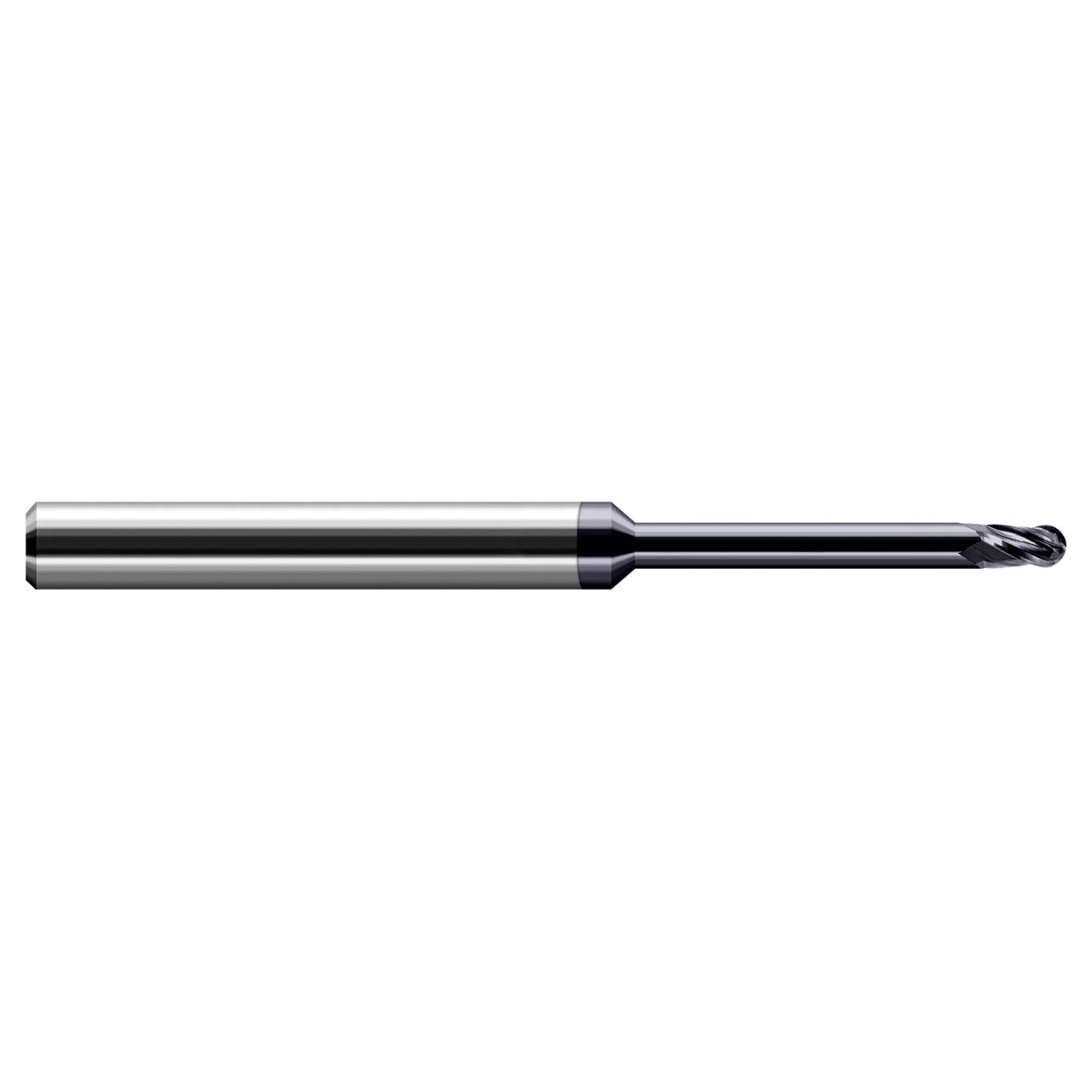

Enjoy improved performance in contour profiling and tipped multi-axis machining with this product offering of Variable Helix End Mills for Medium Alloy Steels - Ball - Long Reach, Stub Flute, which features a reduced neck diameter to avoid heeling when reaching deep within he cavity of a part.
- h6 shank tolerance for high precision tool holders
- Reduced neck diameter to avoid heeling
- Long reach design for deep cavities
- CNC ground in the USA
- Center cutting
- Solid carbide
Product Specifications
| Tool Number | 755462-C3 |
| Cutter Diameter (Inch) | 0.0620" (1/16) |
| Neck Diameter (Inch) | 0.0605" |
| Length of Cut (Inch) | 0.0930" (3/32) |
| Overall Reach (Inch) | 0.1860" |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Flutes | 4 |
| LOC Multiple | 1.5x |
| Reach Multiple | 3x |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating | C3 |
