Harvey Tool

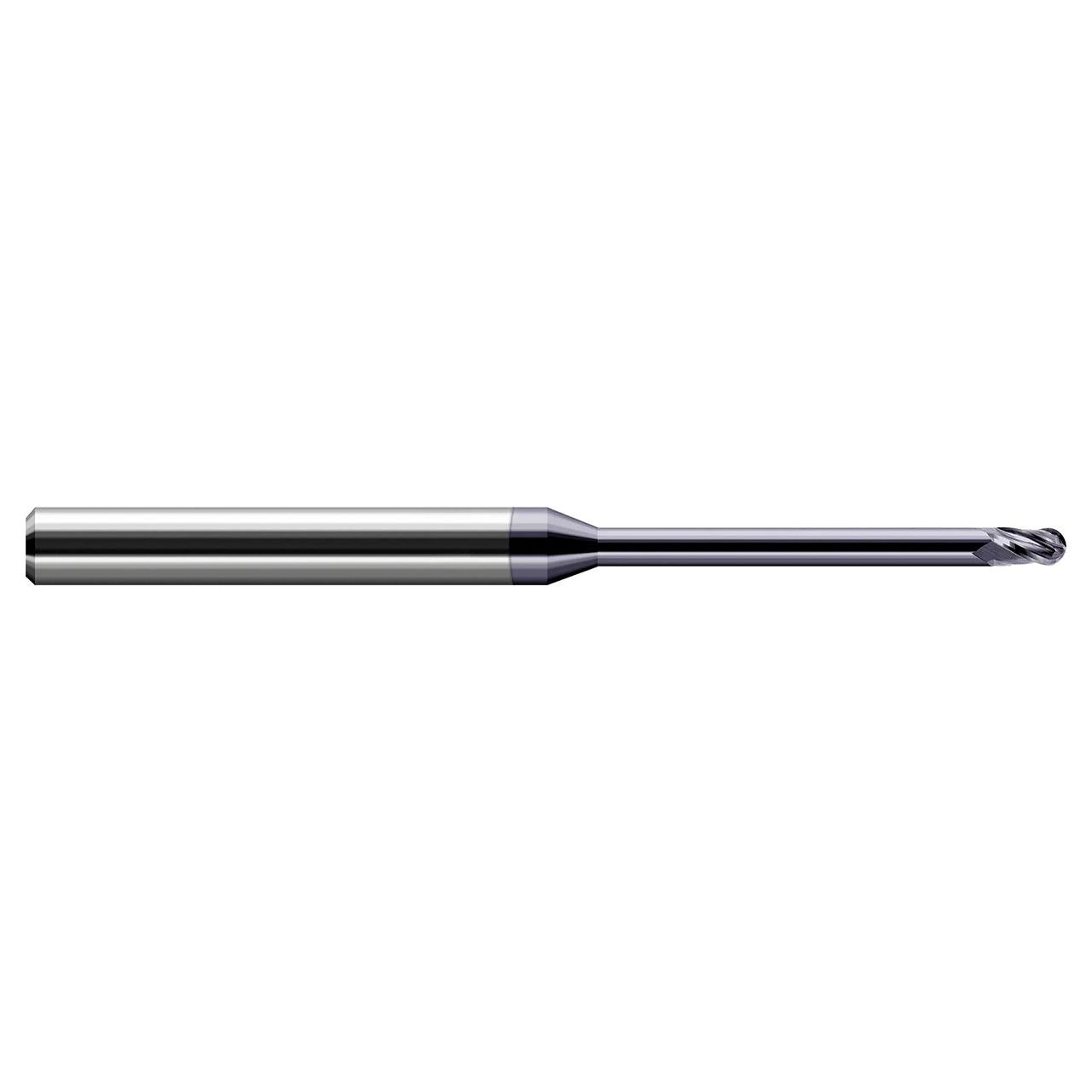

Harvey Tool 752262 | 0.0620" (1/16) Diameter x 0.1250" (1/8) Shank x 0.0930" (3/32) LOC x 2.5000" (2-1/2) OAL x 4 Flutes Uncoated Carbide Miniature Tapered Ball End Mill

Harvey Tool 752262 | 0.0620" (1/16) Diameter x 0.1250" (1/8) Shank x 0.0930" (3/32) LOC x 2.5000" (2-1/2) OAL x 4 Flutes Uncoated Carbide Miniature Tapered Ball End Mill

SKU: 25211342

$57.30 USD
$57.30 USD $57.30 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 14 Grams

View full details

The stub flutes on this Miniature End Mills - Ball - Long Reach, Stub Flute collection of Harvey Tool end mills provides maximum rigidity, while its reduced neck diameter helps to avoid heeling during machining.

  • Long length design for deep cavities
  • Stub flutes for maximum rigidity
  • CNC ground in the USA
  • Center cutting
  • Solid carbide

Product Specifications
Tool Number 752262
Cutter Diameter (Inch) 0.0620" (1/16)
Neck Diameter (Inch) 0.0605"
Length of Cut (Inch) 0.0930" (3/32)
Overall Reach (Inch) 0.9500"
Overall Length (Inch) 2.5000" (2-1/2)
Flutes 4
LOC Multiple 1.5x
Reach Multiple 15x
Shank Diameter (Inch) 0.1250" (1/8)
Coating Uncoated
