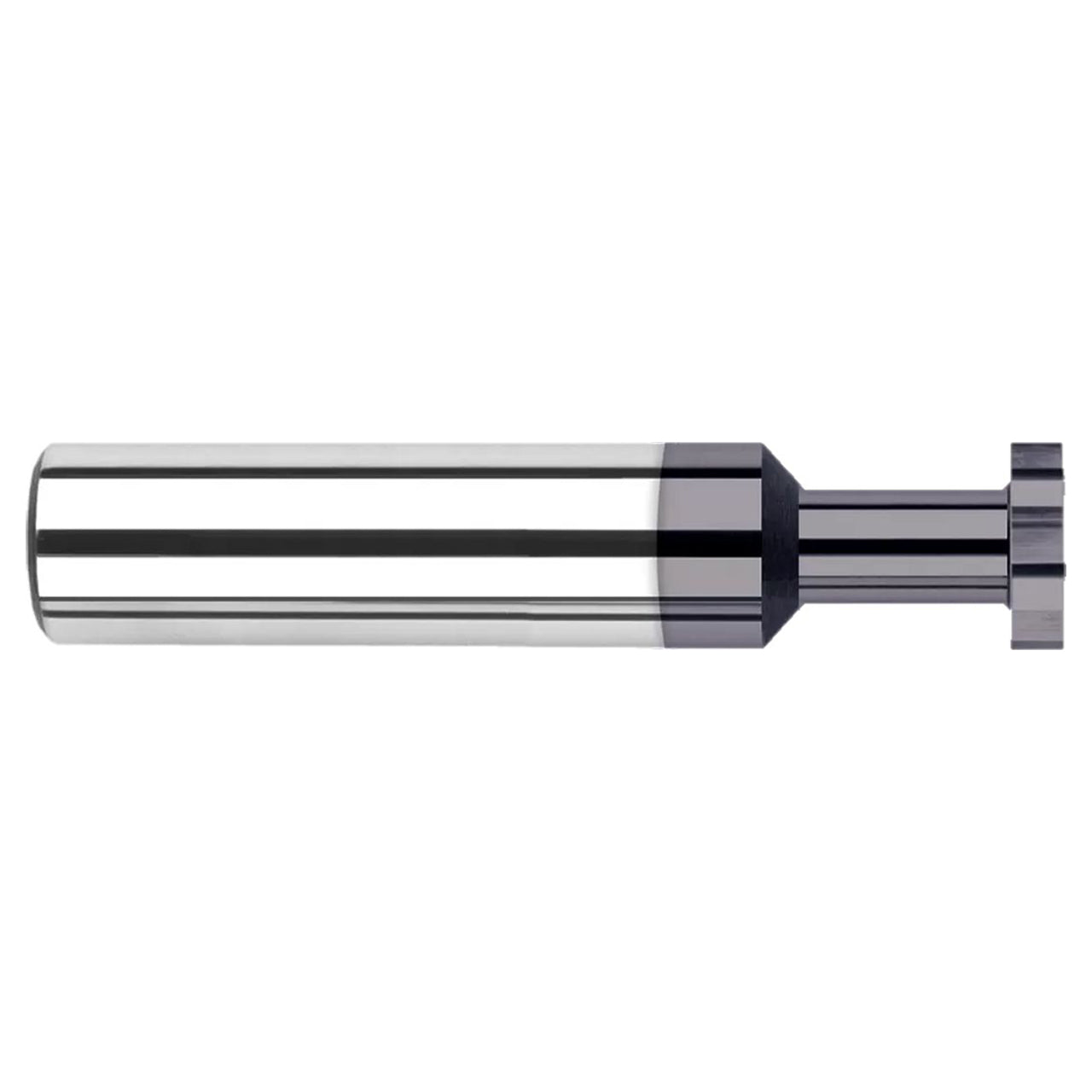

Harvey Tool has long offered the industry's best selection of Keyseat Cutters. Its line of square profile Keyseat Cutters are offered in three unique styles: Standard Slotting, Deep Slotting, or Max Slotting, allowing machinists to select the tool most appropriate for their application.
- Both sides of cutter are dished for clearance
- CNC ground in the USA
- Solid carbide
Product Specifications
| Tool Number | 749762-C3 |
| Cutter Diameter (Inch) | 0.1250" (1/8) |
| Neck Diameter (Inch) | 0.0620" (1/16) |
| Cutter Width (Inch) | 0.0620" (1/16) |
| Neck Length (Inch) | 0.5000" (1/2) |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Radial Depth of Cut (Inch) | 0.0220" |
| Flutes | 6 |
| Reach Multiple | 4x |
| Type | I |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating | C3 |
