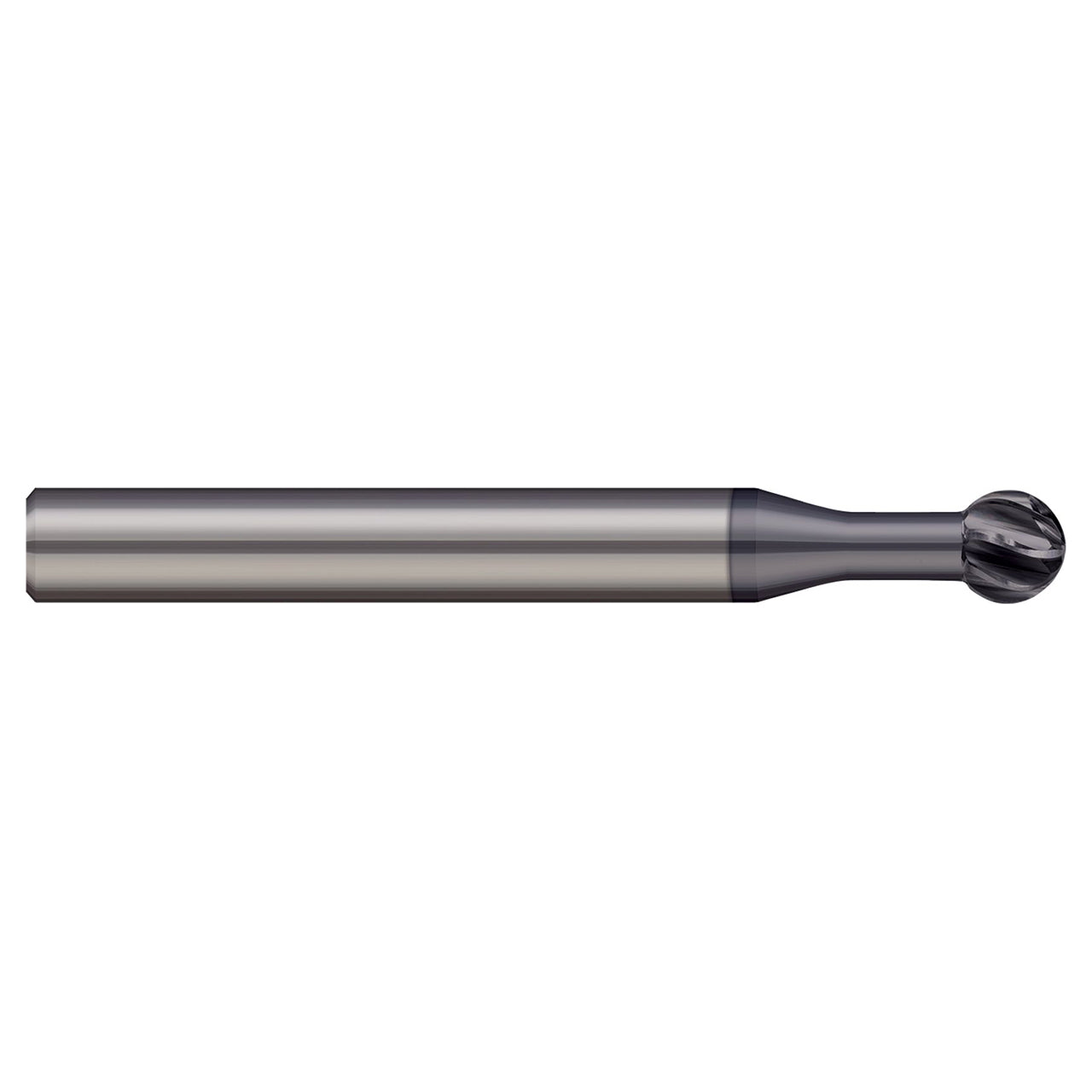

Undercutting End Mills - 270 Degree - For Hardened Steels are optimized for hardened steels.
- Designed for undercutting, deburring, and multi-axis machining
- Increased flute count for added strength and tool life
- CNC ground in the USA
- 270 Degree spherical ball
- Center cutting
- Solid carbide
Product Specifications
| Tool Number | 748893-C6 |
| Cutter Diameter (Inch) | 0.0937" (3/32) |
| Neck Diameter (Inch) | 0.0540" |
| Length of Cut (Inch) | 0.0800" |
| Neck Length (Inch) | 0.3750" (3/8) |
| Overall Reach (Inch) | 0.4550" |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Radius (Inch) | 0.0469" (3/64) |
| Wrap Angle | 270 |
| Flutes | 4 |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating | C6 |
