Harvey Tool

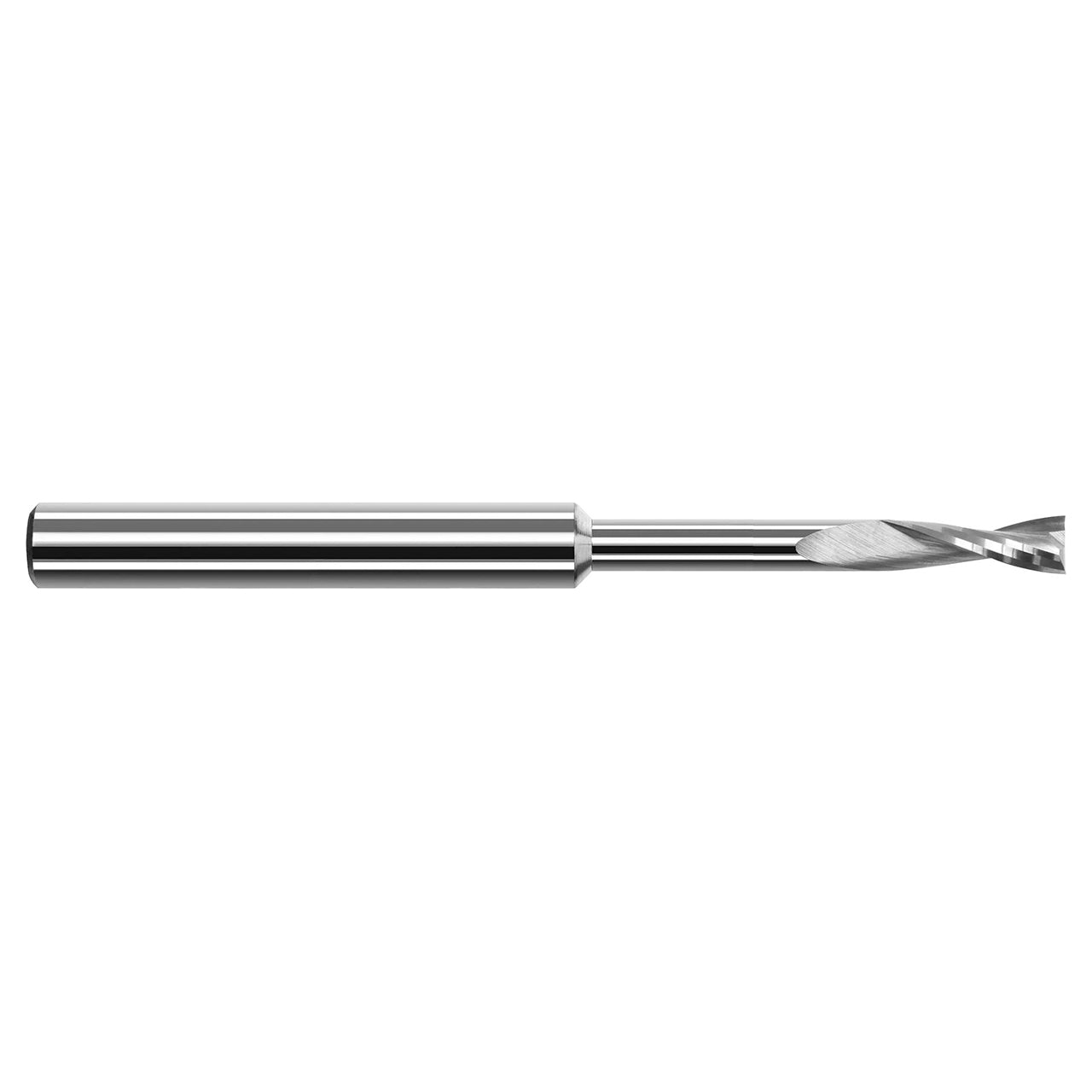

Harvey Tool 748108 | 0.1250" (1/8) Diameter x 0.1250" (1/8) Shank x 0.3750" (3/8) LOC x 3.0000" (3) OAL 2 Flute Uncoated Carbide Plastics 2 Flute Square End Mill

Harvey Tool 748108 | 0.1250" (1/8) Diameter x 0.1250" (1/8) Shank x 0.3750" (3/8) LOC x 3.0000" (3) OAL 2 Flute Uncoated Carbide Plastics 2 Flute Square End Mill

SKU: 25211276

$54.60 USD
$54.60 USD $54.60 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 9 Grams

View full details

Harvey Tool's End Mills for Plastics - Square Upcut - Long Reach - 2 Flute features a high rake, high relief design with large flute valleys to maximize chip removal and performance. It's also center cutting for improved plunging and ramping.

  • High rake, high relief design with large flute valley maximizes chip removal and performance
  • Center cutting design improves plunging and ramping
  • Reduced neck diameter to avoid heeling
  • CNC ground in the USA
  • Solid Carbide

Product Specifications
Tool Number 748108
Cutter Diameter (Inch) 0.1250" (1/8)
Neck Diameter (Inch) 0.1220"
Length of Cut (Inch) 0.3750" (3/8)
Overall Reach (Inch) 1.2500" (1-1/4)
Overall Length (Inch) 3.0000" (3)
Flutes 2
LOC Multiple 3x
Reach Multiple 10x
Shank Diameter (Inch) 0.1250" (1/8)
Coating Uncoated
