Product Specifications
| Manufacturer Part Number | 746524-C6 |
| Diameter (Inch) | 3/8" |
| Diameter (Decimal Inch) | 0.375" |
| Neck Diameter (Decimal Inch) | 0.241" |
| Length of Cut (Decimal Inch) | 0.320" |
| Neck Length (Inch) | 1/4" |
| Neck Length (Decimal Inch) | 0.250" |
| Overall Reach (Decimal Inch) | 0.570" |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.500" |
| Radius (Inch) | 3/16" |
| Radius (Decimal Inch) | 0.188" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.375" |
| Wrap Angle (Degree) | 270 Degree |
| Number of Flutes | 8 |
| Material | Carbide |
| Coating | AlTiN Nano |

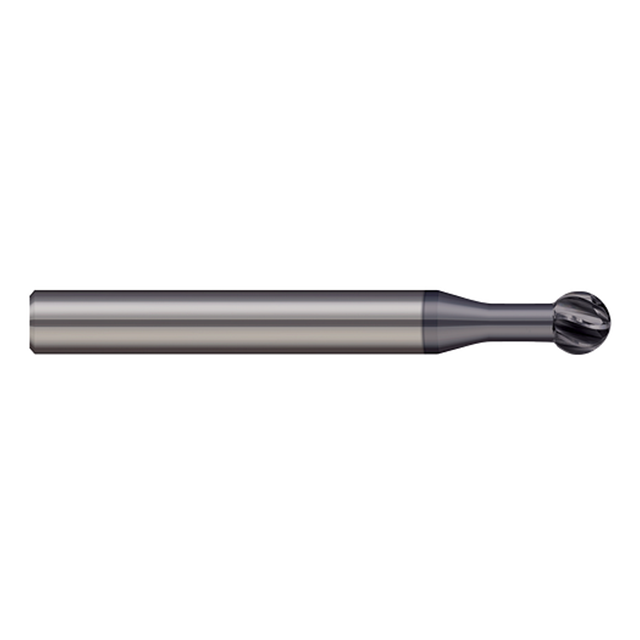

| Product Type | Undercutting End Mill |
