Product Specifications
| Manufacturer Part Number | 746512-C6 |
| Diameter (Inch) | 3/16" |
| Diameter (Decimal Inch) | 0.188" |
| Neck Diameter (Decimal Inch) | 0.117" |
| Length of Cut (Decimal Inch) | 0.160" |
| Neck Length (Inch) | 3/16" |
| Neck Length (Decimal Inch) | 0.187" |
| Overall Reach (Decimal Inch) | 0.347" |
| Overall Length (Inch) | 2" |
| Overall Length (Decimal Inch) | 2.000" |
| Radius (Decimal Inch) | 0.094" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (Decimal Inch) | 0.188" |
| Wrap Angle (Degree) | 270 Degree |
| Number of Flutes | 6 |
| Material | Carbide |
| Coating | AlTiN Nano |

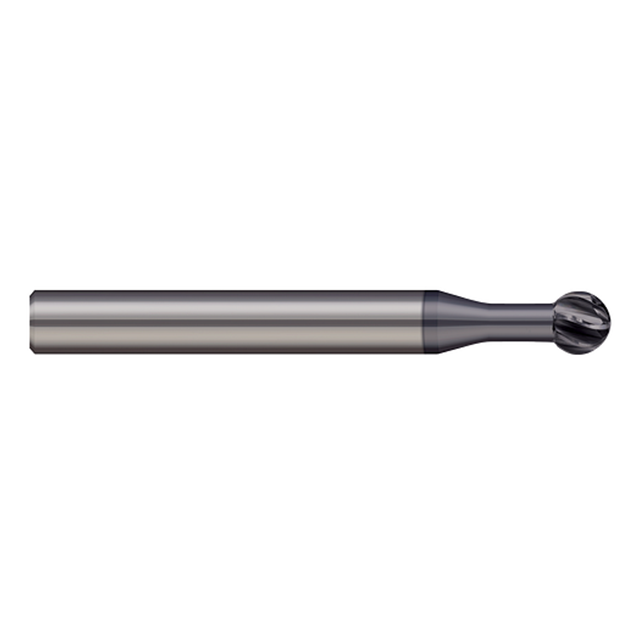

| Product Type | Undercutting End Mill |
